Description

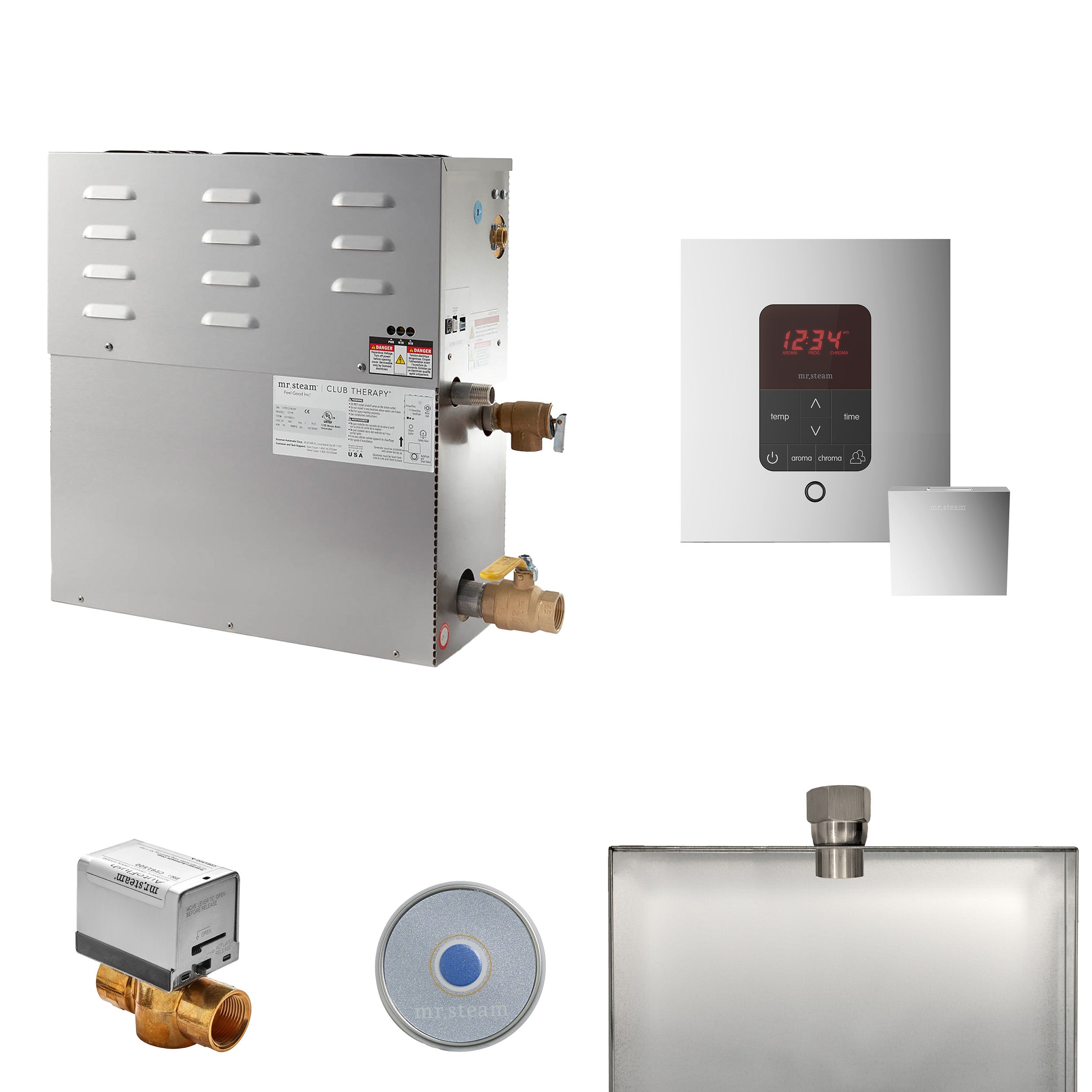

CU Series Commercial Generators meet rigid requirements and nationally recognized testing standards, including UL. ASME steam pressure vessels are built to the ASME Boiler and Pressure Vessel Code requirements and are National Board Registered. Vertical construction means a smaller footprint, which means the generator can be located within the tightest of mechanical rooms. High quality fibrous glass pressure vessel insulation delivers maximum energy performance.

Technical Specifications

• Stainless steel heating elements are corrosion-resistant
• ASME-grade flanges support longevity and reliable performance
• An Integral pressure gauge and sight glass provides operating information at a glance
• Standard full port drain valve enables maximum draining of the pressure vessel
• Comes equipped with a hinged access door for ease of installation and service
• Optional Automatic Blowdown System features electronically controlled maintenance and 24-hour/7-day programming

Shipping Details

• Weight - 47 LB.
• Width (Side to Side) - 12.25 IN.
• Depth (Front to Back) - 33.25 IN.
• Height (Top to Bottom) - 22.25 IN.
• Ship. Weight - 48 LB.
• Ship. Width (Side to Side) - 13.25 IN.
• Ship. Depth (Front to Back) - 34.25 IN.
• Ship. Height (Top to Bottom) - 23.25 IN.

Downloads

• Planning Guide
• Benefits Brochure
• Steam Benefits Brochure
• Installation Manual
• Technical Specification Chart
• Warranty Sheet
