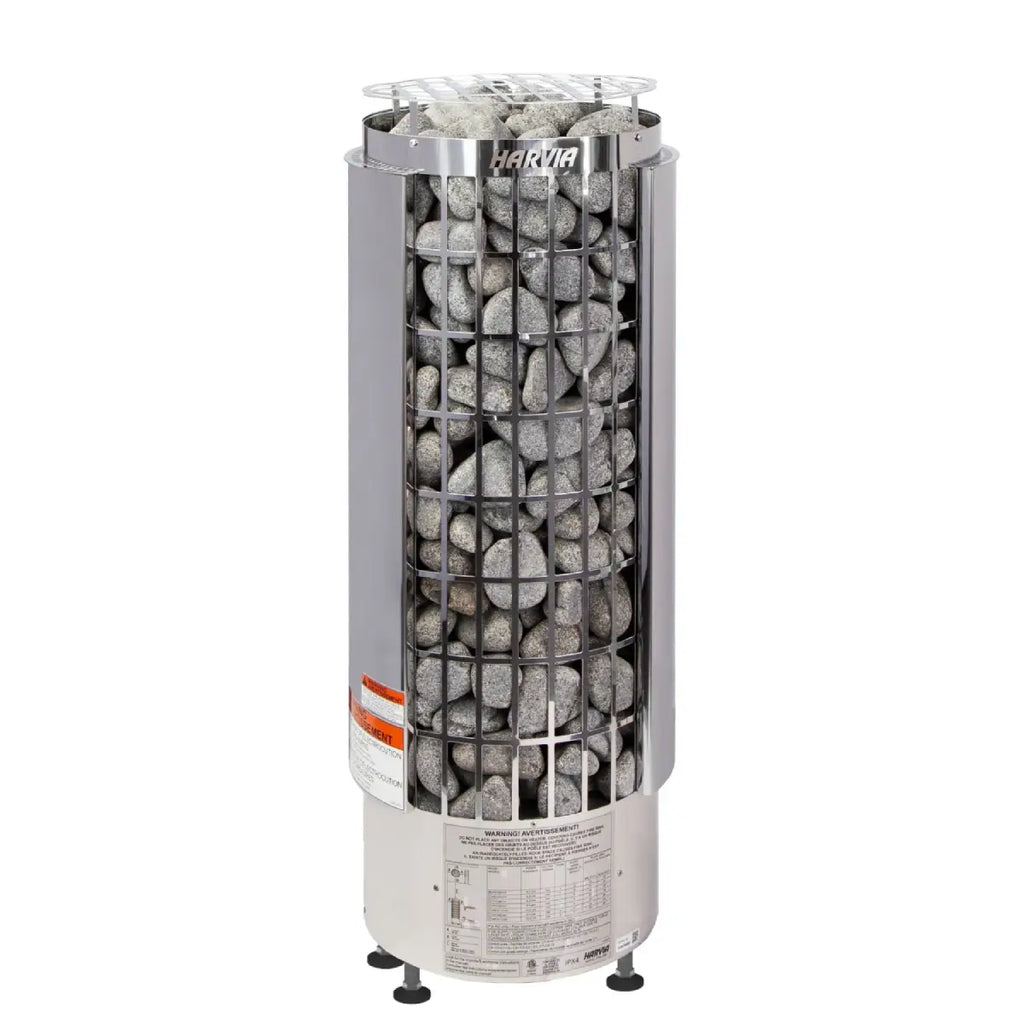

Harvia Cilindro PC110E Sauna Heater – 10.5 kW

High-Capacity Electric Sauna Heater for Large Home Saunas

The Harvia Cilindro PC110E is a floor-standing, stainless steel electric sauna heater engineered for large residential sauna rooms. With an elegant open-front cylinder design and a 270 lb stone capacity, it provides a soft, rich steam experience that mimics a traditional wood-burning sauna — with the convenience of electric power.

Built in Finland, the PC110E is crafted for longevity and performance. Its partially apertured outer shell lets bathers enjoy full steam by throwing water on the side or top of the stone column. Ideal for corner or side-wall installation, this heater heats rooms from 317 to 636 cubic feet and is UL listed for safe residential use.

Key Features

• Model: Harvia Cilindro PC110E

• Power Output: 10.5 kW

• Voltage Options:

  • 240V / 1-phase

  • 208V / 3-phase

• Recommended Room Volume: 317–636 cubic feet

• Stone Capacity: 270 lbs (stones sold separately)

• Construction: Stainless steel body and heating elements

• Installation: Floor model, corner or side-wall placement

• Dimensions: 15½″W x 15″D x 45¼″H

• Heater Weight: 50 lbs (excluding stones)

• Made in Finland

• UL Listed

Control Requirement (based on electrical configuration)

• 240V / 1-phase (PC110E-U1)
  Requires:

  • Digital Control: CX30 control unit

  • Contactors: FX404

  • Compatible Relay Box: F-2T

• 208V / 3-phase (PC110E-U3)
  Requires:

  • Digital Control: CX30 control unit

  • Contactors: FX503

  • Compatible Relay Box: F-2T

Note: Manual control is not available or recommended for this model.

Electrical Requirements

Why Choose the Harvia PC110E?

• Soft, powerful steam with 270 lbs of stone

• Premium electric heater for home saunas up to 636 cu. ft.

• High-end Finnish construction

• Compatible with Xenio digital controls for precise temperature and timer management

• Ideal for modern or traditional-style sauna room

Click here to download the heater installation manual
