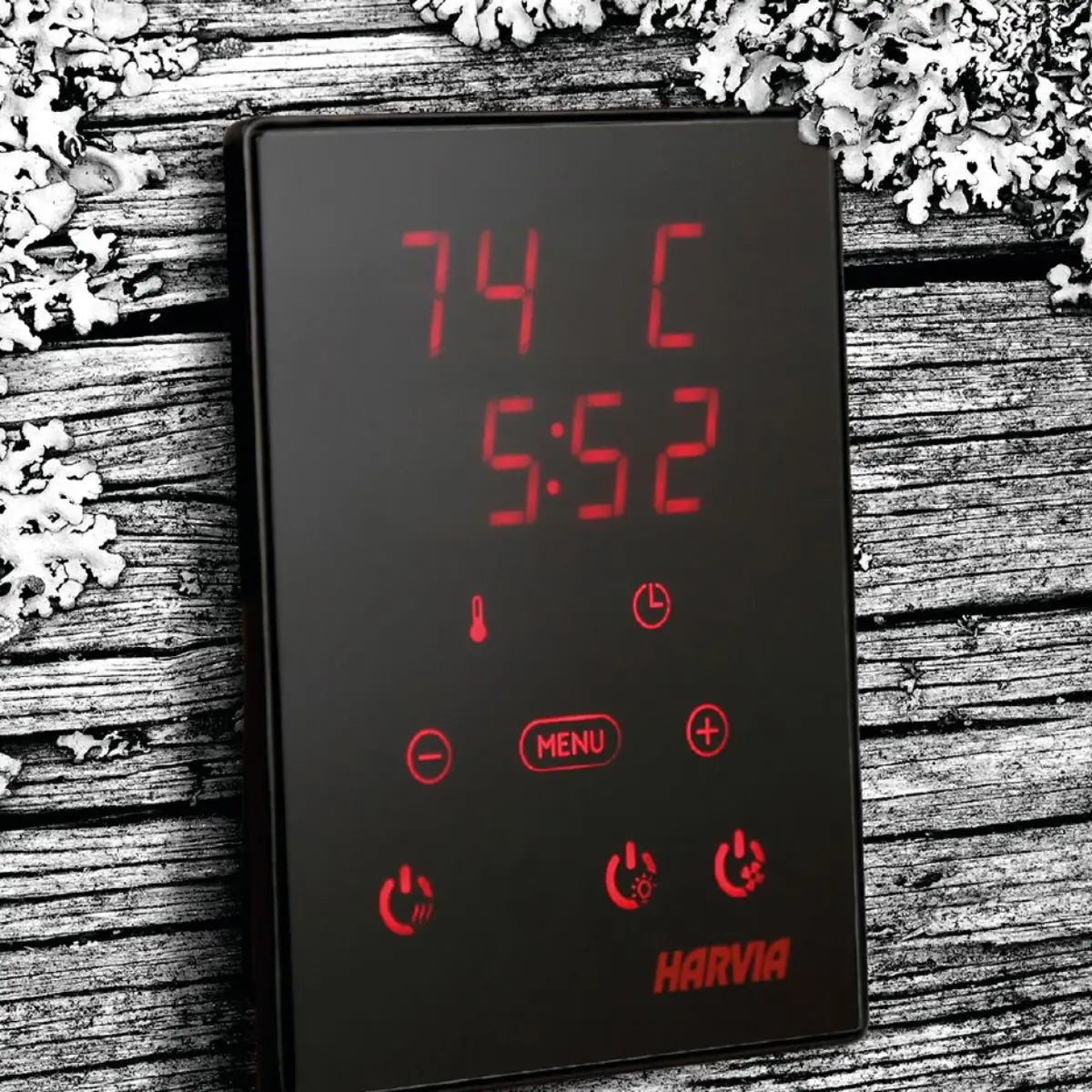

Harvia Xenio CX30C-U3 Digital Control Unit for Combi Sauna Heaters

The Harvia Xenio CX30C-U3 is a sophisticated digital control unit designed for seamless integration with Harvia Combi series sauna heaters operating at 208V three-phase electrical systems. This unit offers a sleek touch control panel that enhances the user experience by providing intuitive management of your sauna's heating and lighting functions.

Key Features:

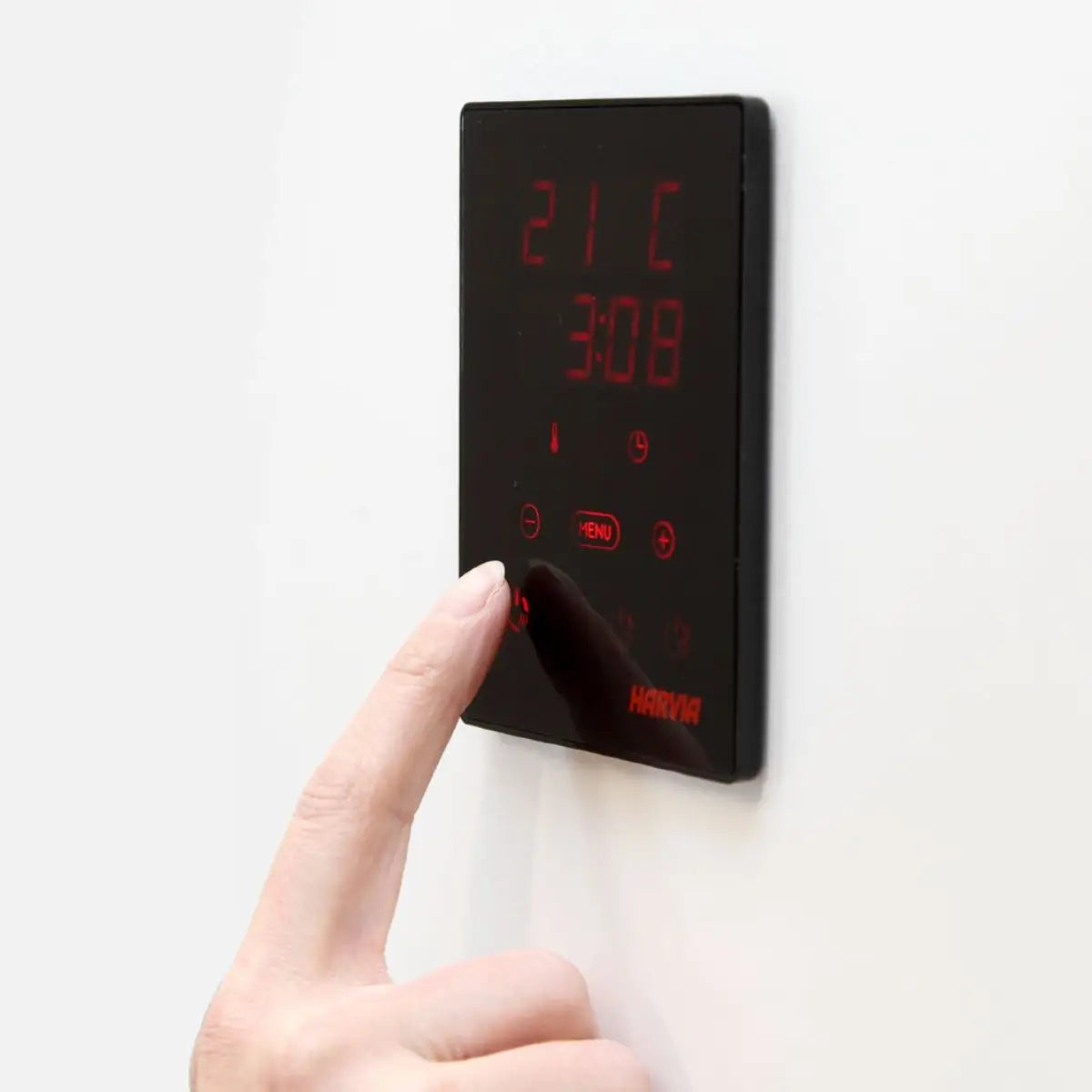

• Touch Control Panel: Features a modern touch interface for easy adjustment of sauna settings, including temperature and lighting.

• Heater and Lighting Control: Specifically designed to control Combi model heaters and room lighting, ensuring a comfortable and customizable sauna environment.

• Timer Functions: Equipped with a 60-minute timer, plus additional delay timers ranging from 10 minutes to 12 hours in 10-minute increments, allowing for flexible sauna session planning.

• Temperature Display: Offers temperature readings in either Fahrenheit (°F) or Celsius (°C), accommodating user preferences.

• Extended Connectivity: Includes 13 feet of sensor cable and a 16-foot data cable, facilitating flexible installation options. The control unit can be positioned up to 82 feet away from the sauna room, providing versatility in placement.

Specifications:

• Model: CX30C-U3

• Power Supply Voltage: 208V (Three-Phase)

• Phase: Three-Phase

• Maximum Output: 10 kW

• Temperature Adjustment Range: 104–194°F (40–90°C)

• Pre-Setting Time Adjustment Range: 0–12 Hours

• Width: 3.4"

• Depth: 1.0"

• Height: 4.4"

Installation and Compatibility Notes:

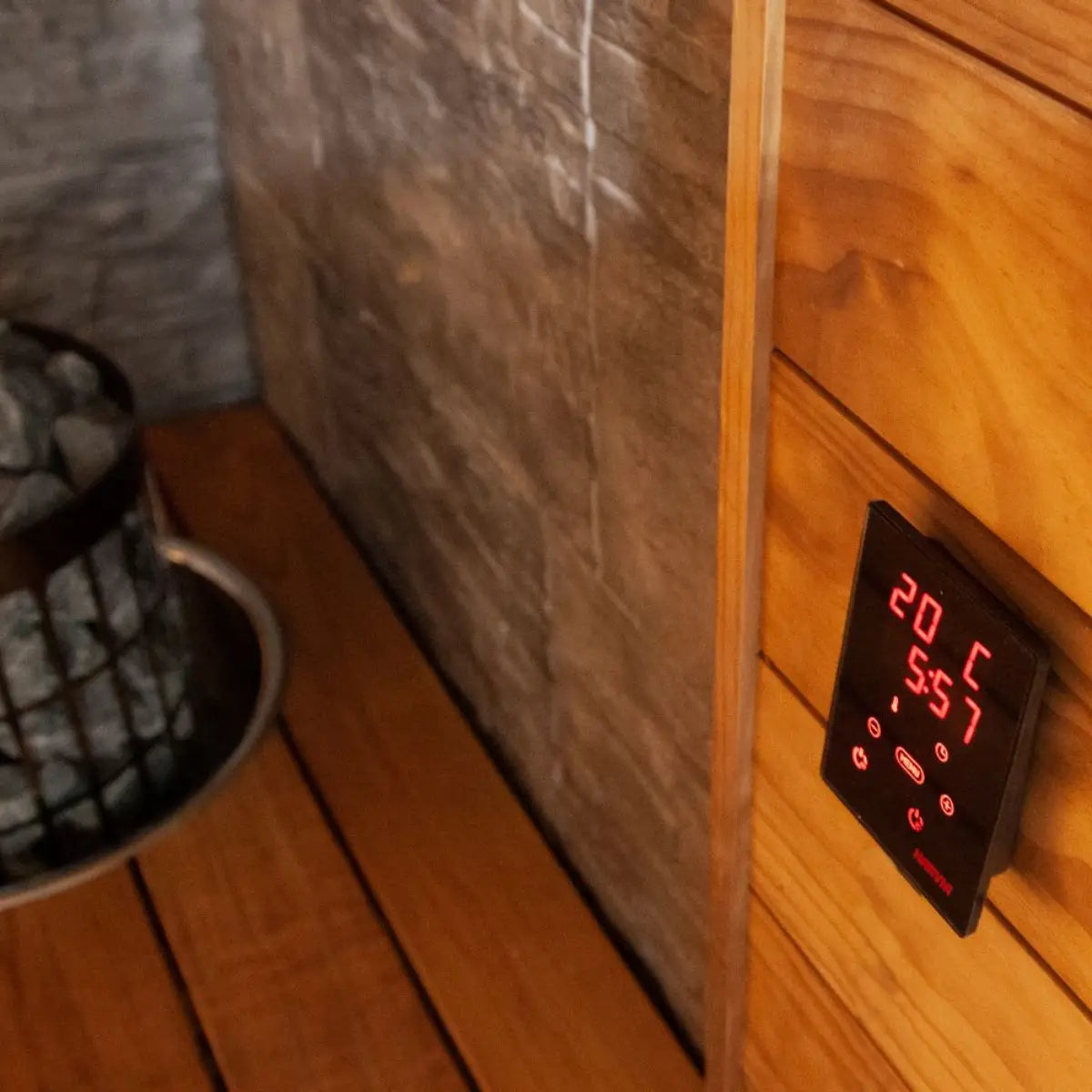

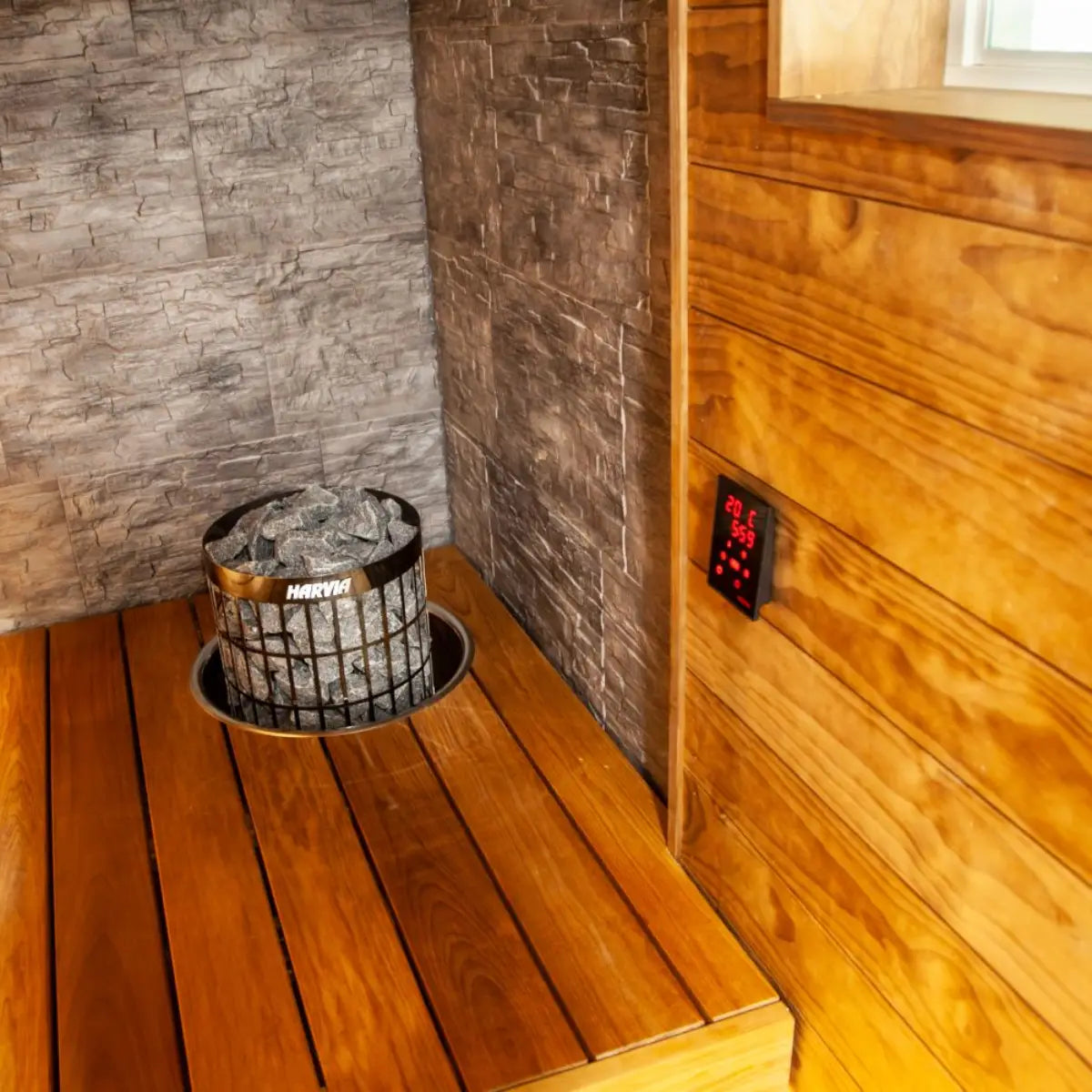

• Installation Location: Suitable for installations both inside and outside the sauna room, offering flexibility based on user preferences and space constraints.

• Control Range: The control unit can be installed up to 82 feet away from the sauna room, providing versatility in placement.

• Heater Compatibility: Designed exclusively for Harvia Combi series heaters operating at 208V three-phase. It is not compatible with single-phase systems or non-Combi models.

Product Includes:

• Digital Control Panel

• Humidity Sensor

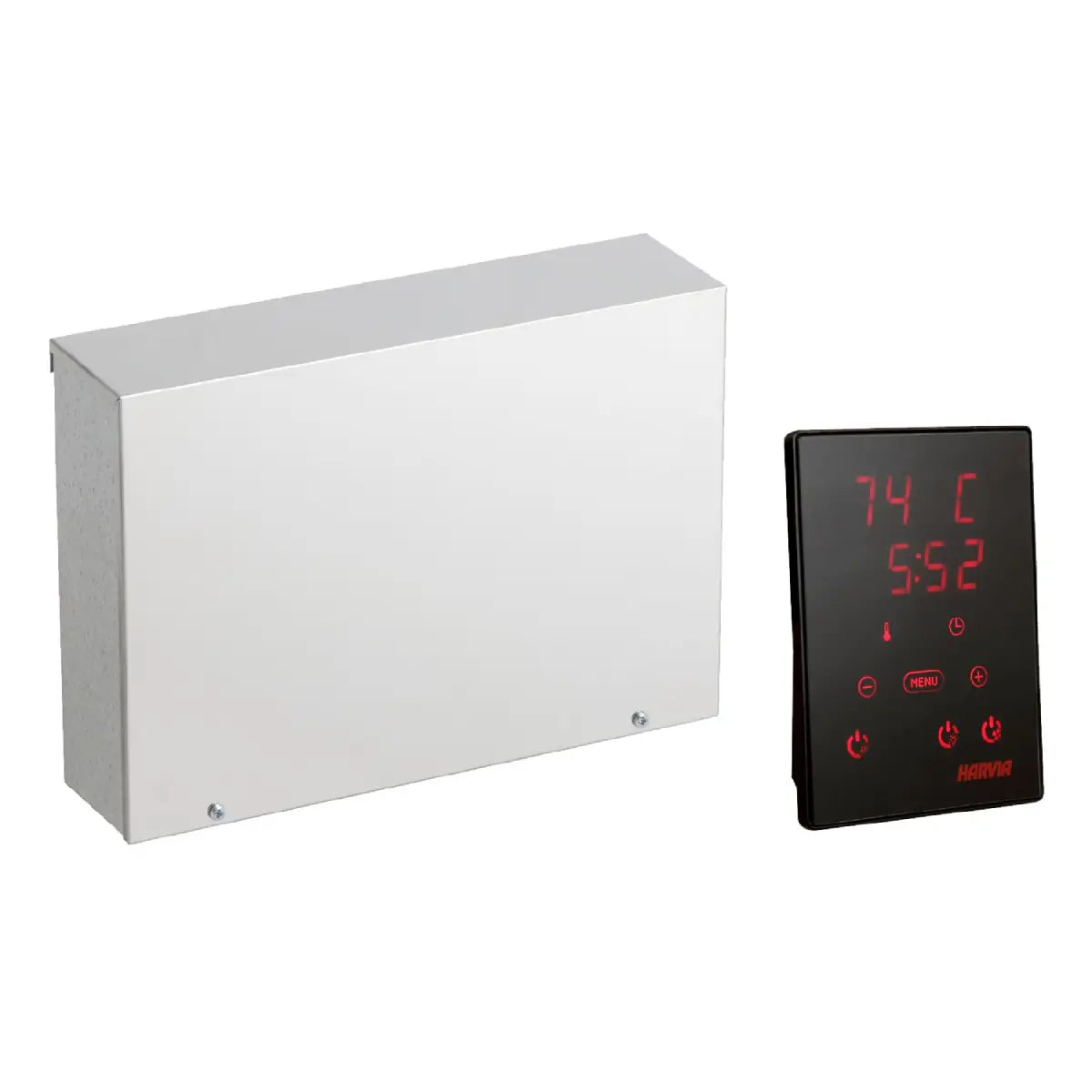

• Power Unit

• Temperature Sensor

• Installation and Operation Manual

• 1-Year Full Warranty

• 5-Year Service Warranty

Additional Information:

• Safety Features: Incorporates essential safety features such as overheating protection and a child lock function to ensure safe operation during use.

• Installation Recommendations: For optimal performance and safety, it is recommended that installation be performed by a licensed electrician familiar with sauna electrical systems.

• Warranty Details: Comes with a 1-year full warranty covering defects in materials and workmanship, and a 5-year service warranty providing access to authorized service centers for repairs and maintenance.
