Homecraft Revive 9kW Electric Sauna Heater
240V 1-Phase / No Control / No Stones
$1,775.00
Skip to product information
Pickup currently not available

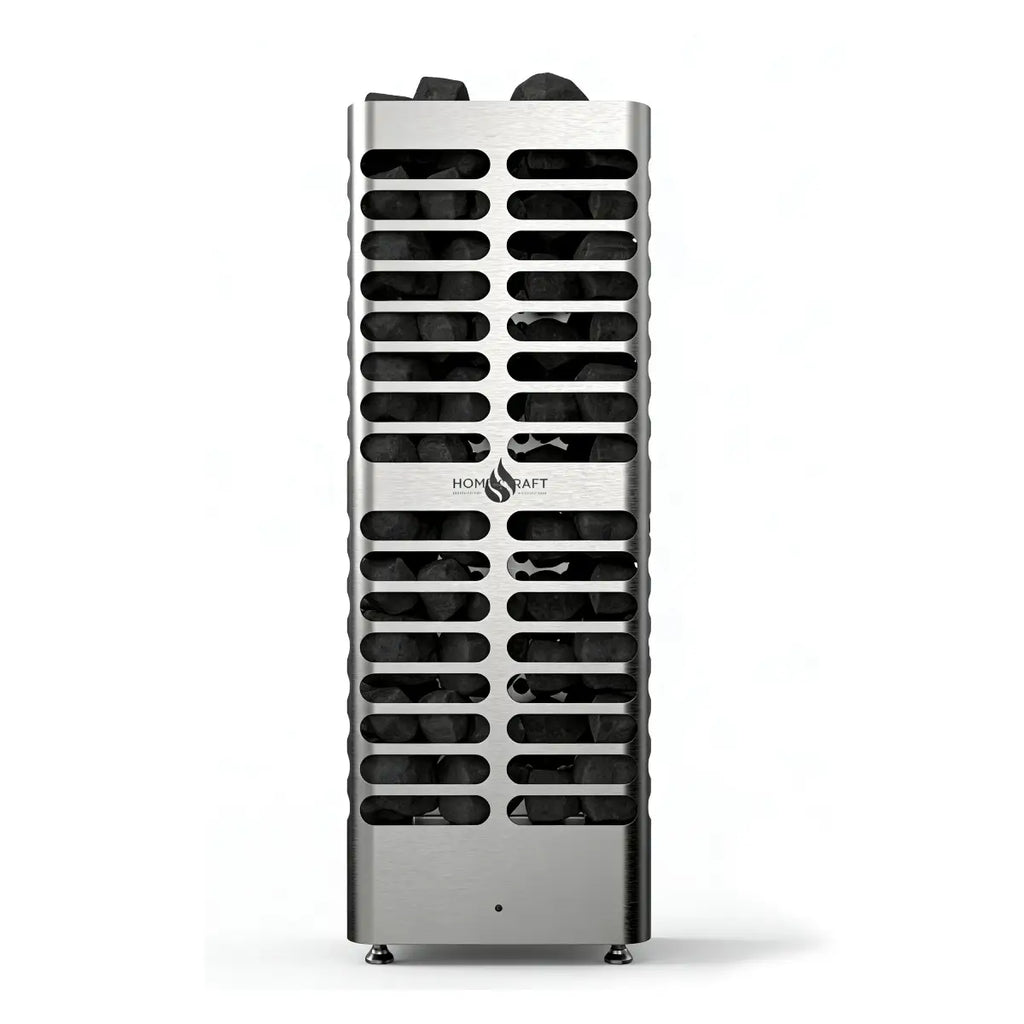

Homecraft Revive 9kW Electric Sauna Heater — Premium Wet-Sauna Performance

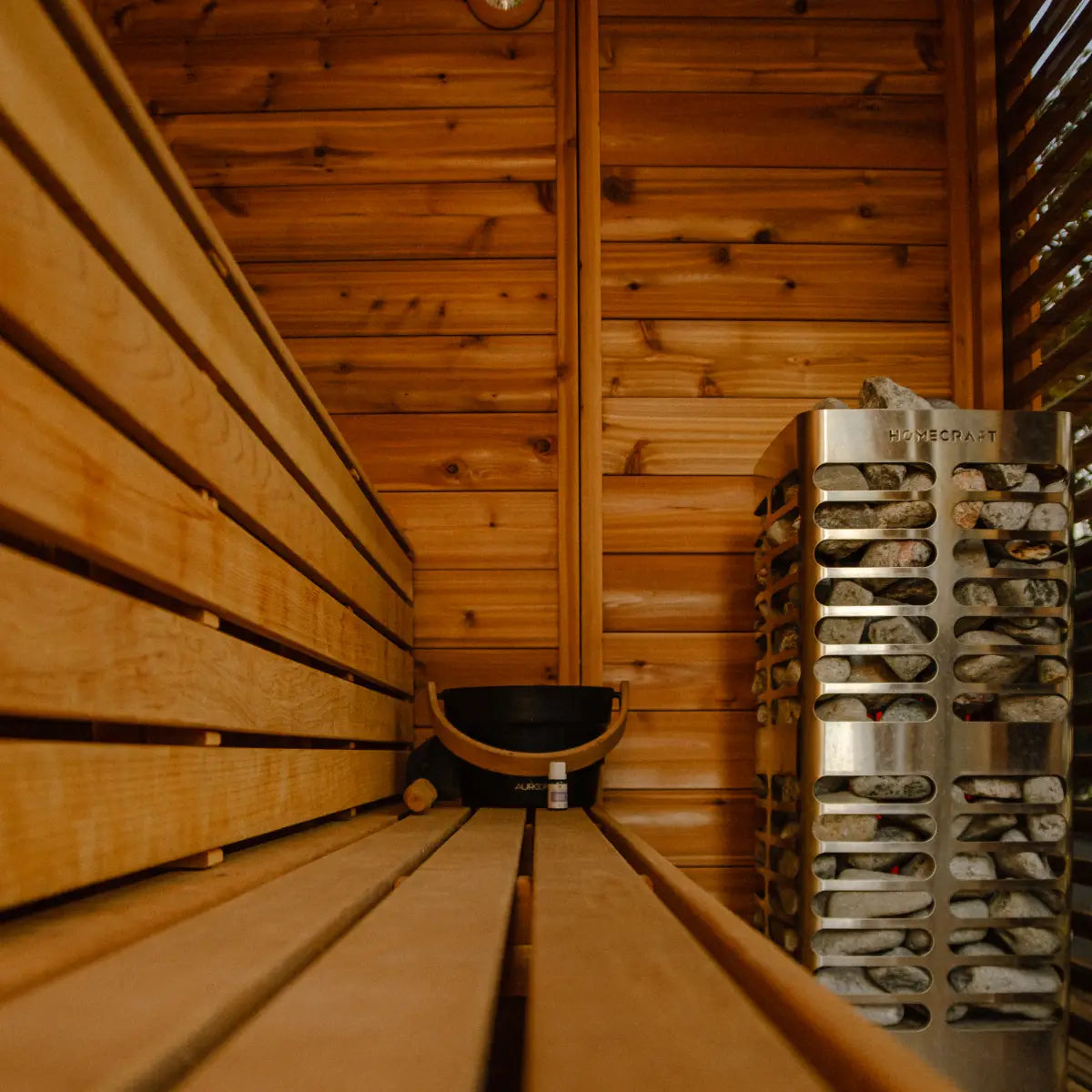

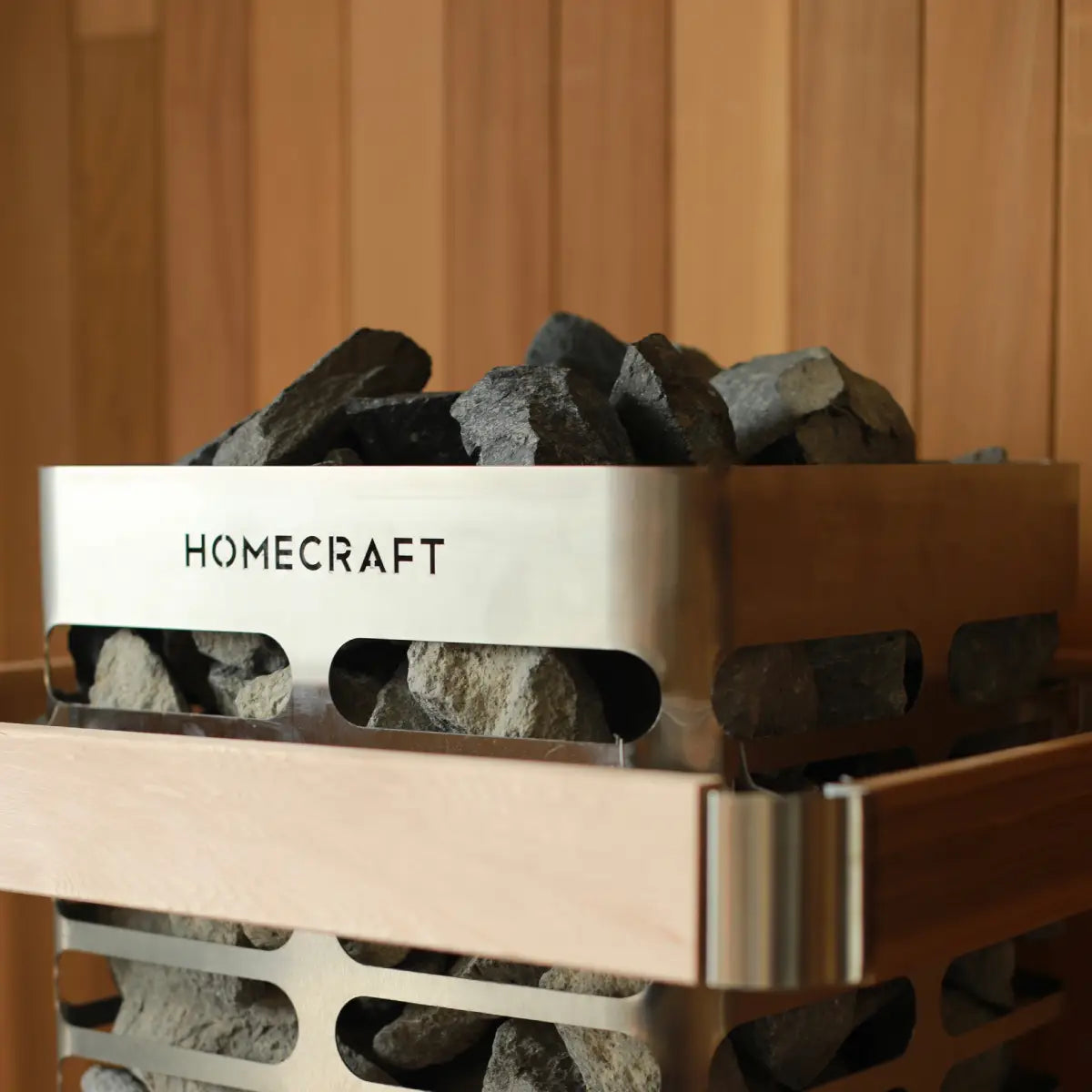

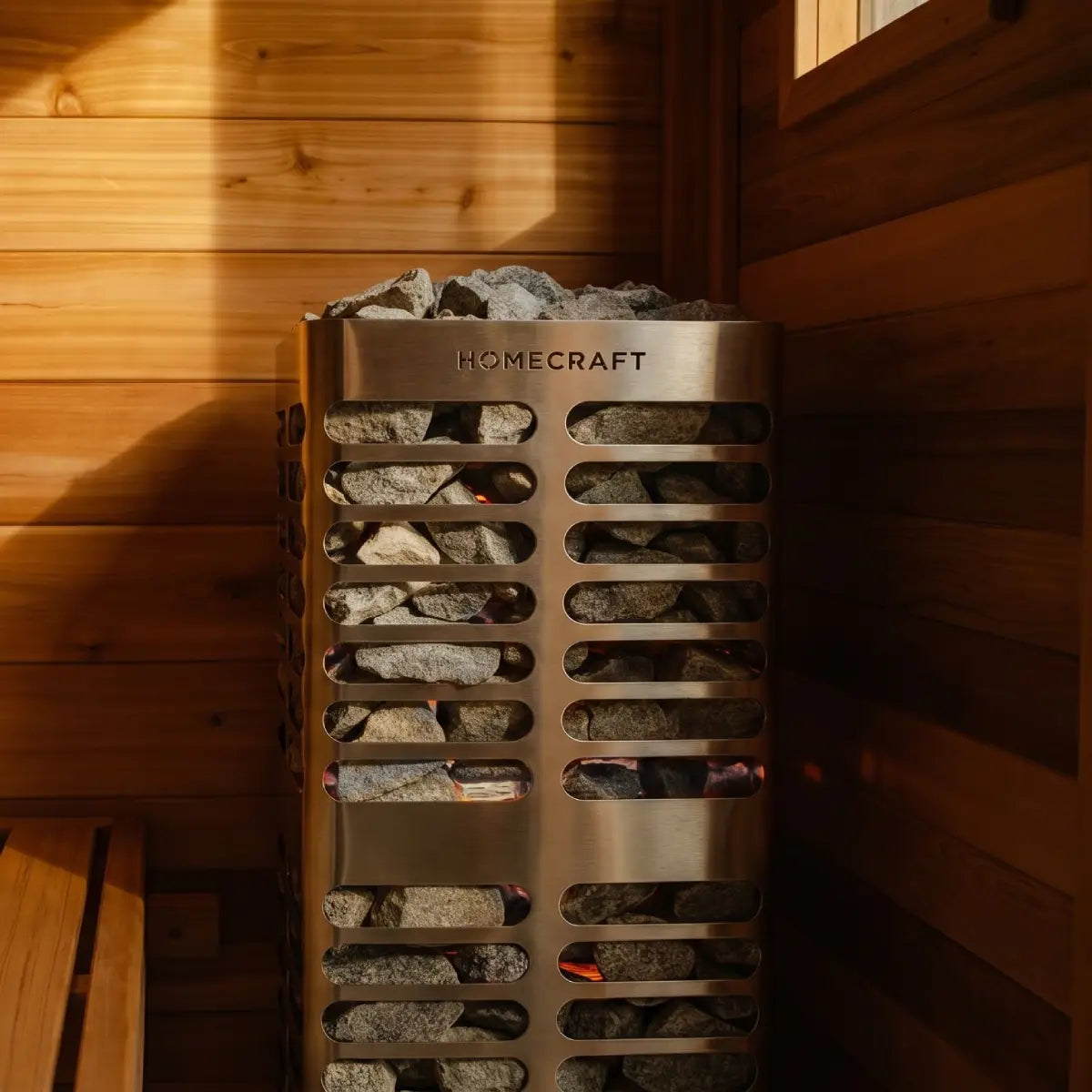

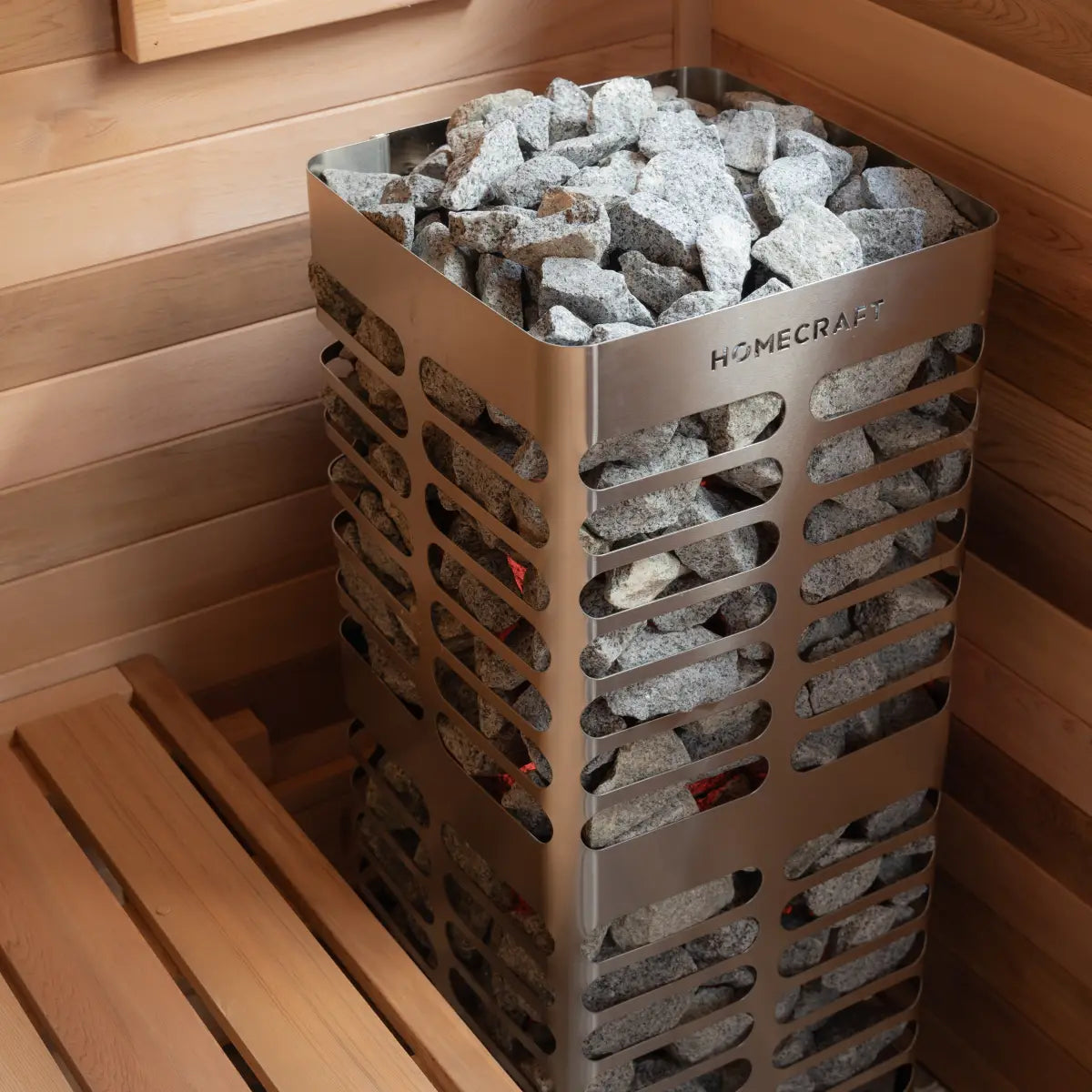

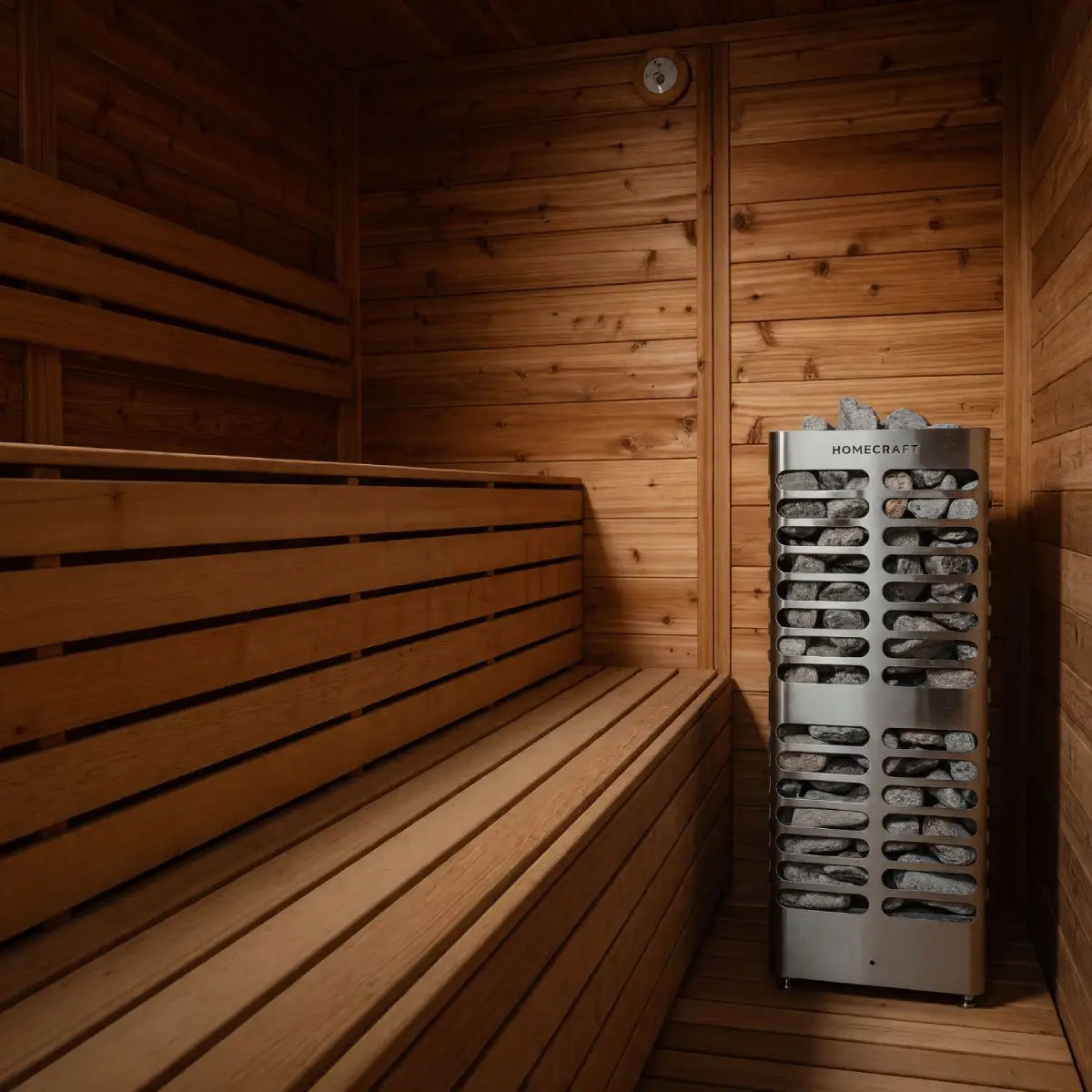

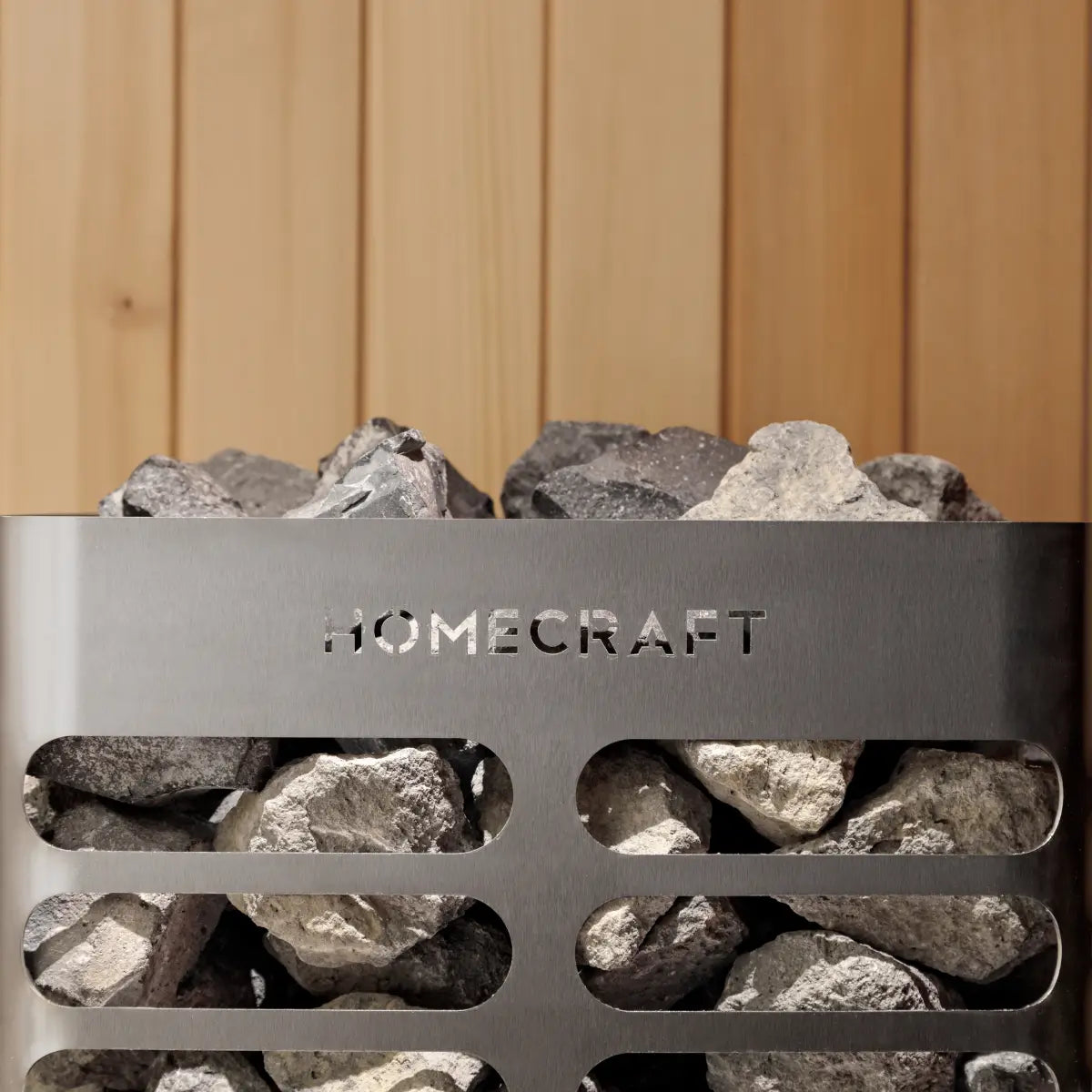

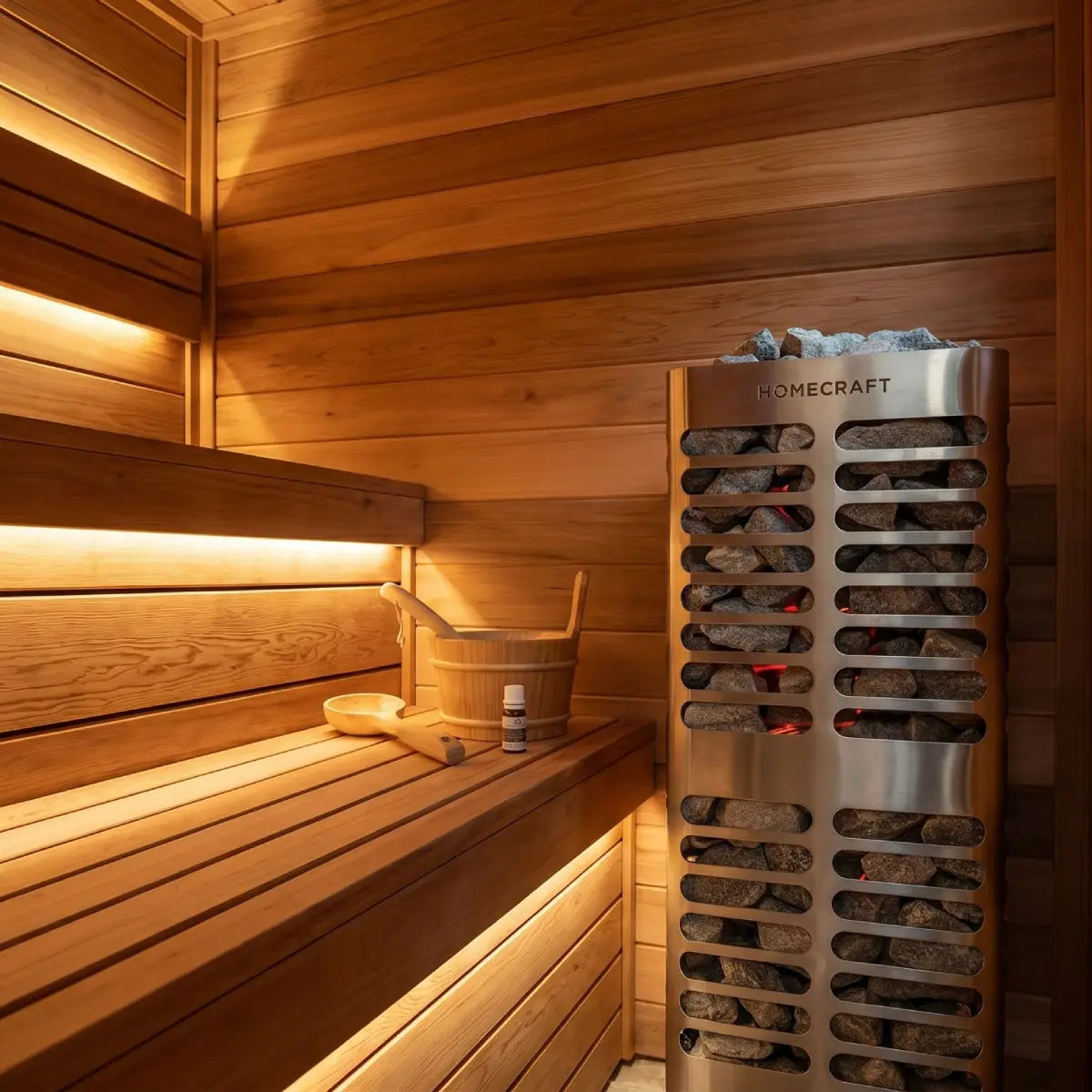

The Revive is a sleek, modern, high-end sauna heater designed to give a truly amazing sauna experience. The tower design holds up to 200 pounds of rocks, and our inner air-flow chamber allows large amounts of water to be added — creating abundant steam and increasing humidity for a wet-sauna experience.
Design & Build
The Revive was engineered for the sauna user who wants more control over the type of heat they experience. Our protective air-flow chamber improves efficiency and protects the heating elements for longer life. 100% stainless steel, CSA & UL 875 approved.
Key Features
- Proudly Made in Canada — 100% stainless steel construction, built in BC
- ETL Certified — CSA and UL approved for North American installation
- 2-Year Manufacturer Guarantee — including the heating elements
- Protected Element Air Chamber — advanced airflow for faster heat-up and extended heater life
- Premium Stainless Steel — bold, modern aesthetics with lasting durability
- 35+ years of sauna heritage — Homecraft has been advocating for true sauna culture in North America since the 1980s
See It in Action
Choosing Your Control
Every Homecraft heater requires a sauna control to operate. All of our control configurations ship with a WiFi-enabled touchpad so you can preheat and adjust your sauna from your phone:
- Indoor Control + WiFi Touchpad — standard installation with the control box mounted inside a protected mechanical or utility space, paired with an in-sauna WiFi touchpad for temperature, timer, and smartphone control.
- Outdoor Control + WiFi Touchpad — weatherproof control box for installations where the box must be mounted outdoors or in a non-conditioned space, paired with a WiFi touchpad.
- Tke 24D Built-in 24-Hour Control — all-in-one control with integrated touchpad and a 24-hour timer for scheduled sessions.
The specific control model (Tke 2-2, Tke 2-3, or Tke 3) is matched automatically to your voltage and wattage selection.
Sauna Stones
This heater requires 7 boxes of Homecraft Sauna Stones to fill the rock chamber. Choose Stones Included to ship your full stone set with the heater, or No Stones if you already have stones on hand or plan to source them separately.
Technical Specifications
| Feature | Details |
|---|---|
| Model | Homecraft Revive 9kW |
| Power Output | 9 kW |
| Voltage | 240V 1-Phase / 208V 3-Phase |
| Recommended Room Size | 600 – 900 cu. ft. |
| Stone Capacity | 200 lbs (7 boxes of Homecraft Sauna Stones) |
| Heater Dimensions | 14" W × 14" D × 36" H |
| Distance to Combustibles | 3.5" |
| Construction | 100% Stainless Steel |
| Certifications | ETL Listed (CSA & UL 875) |
| Country of Origin | Canada (British Columbia) |
| Warranty | 2-Year Manufacturer Guarantee (including heating elements) |
| Recommended Breaker (240V 1-Phase) | 50 amp |
| Recommended Breaker (208V 3-Phase) | 40 amp |
| Recommended Wire Size | AWG 8 |
| Required Control | Sauna control & touchpad (sold with heater — select your configuration above) |
Note: All dimensions and specifications are approximate and subject to change without notice. Installation must be performed by a qualified electrician in accordance with all local building and electrical codes.
Delivery & Installation
Your Homecraft heater is carefully packaged for safe transit. Installation must be performed by a qualified electrician and must comply with all local building and electrical codes. See the included installation manual for complete wiring, mounting, and stone-loading instructions.
Homecraft Revive — Size Comparison Chart
| Feature | Revive 6kW | Revive 7.5kW | Revive 9kW |
|---|---|---|---|
| Product Image |
|
|
|
| Power Output | 6 kW | 7.5 kW | 9 kW |
| Recommended Room Size | 400 – 625 cu. ft. | 450 – 700 cu. ft. | 600 – 900 cu. ft. |
| Voltage | 240V 1-Phase / 208V 3-Phase | 240V 1-Phase / 208V 3-Phase | 240V 1-Phase / 208V 3-Phase |
| Stone Capacity | 200 lbs (7 boxes) | 200 lbs (7 boxes) | 200 lbs (7 boxes) |
| Recommended Breaker (240V) | 40 amp | 40 amp | 50 amp |
| Recommended Breaker (208V) | 30 amp | 30 amp | 40 amp |
| Recommended Wire Size | AWG 10 (208V) / AWG 8 (240V) | AWG 10 (208V) / AWG 8 (240V) | AWG 8 |
| WiFi Control | ✅ Yes | ✅ Yes | ✅ Yes |
| ETL Certified | ✅ Yes | ✅ Yes | ✅ Yes |
| Made in Canada | ✅ Yes | ✅ Yes | ✅ Yes |
| Construction | 100% Stainless Steel | 100% Stainless Steel | 100% Stainless Steel |
| Warranty | 2-Year | 2-Year | 2-Year |
Revive 6kW
Power Output
6 kW
Room Size
400 – 625 cu. ft.
Stone Capacity
200 lbs (7 boxes)
Breaker (240V)
40 amp
Breaker (208V)
30 amp
Wire Size
AWG 10 (208V) / AWG 8 (240V)
WiFi Control
✅ Yes
ETL Certified
✅ Yes
Made in Canada
✅ Yes
Warranty
2-Year
Revive 7.5kW
Power Output
7.5 kW
Room Size
450 – 700 cu. ft.
Stone Capacity
200 lbs (7 boxes)
Breaker (240V)
40 amp
Breaker (208V)
30 amp
Wire Size
AWG 10 (208V) / AWG 8 (240V)
WiFi Control
✅ Yes
ETL Certified
✅ Yes
Made in Canada
✅ Yes
Warranty
2-Year
Revive 9kW
Power Output
9 kW
Room Size
600 – 900 cu. ft.
Stone Capacity
200 lbs (7 boxes)
Breaker (240V)
50 amp
Breaker (208V)
40 amp
Wire Size
AWG 8
WiFi Control
✅ Yes
ETL Certified
✅ Yes
Made in Canada
✅ Yes
Warranty
2-Year
Key Differences
Power & Room Coverage:
- The 6kW is the entry point of the Revive lineup, ideal for rooms from 400–625 cu. ft. — a versatile choice for most residential sauna builds.
- The 7.5kW steps up to cover rooms from 450–700 cu. ft., offering more power headroom for larger or less insulated spaces.
- The 9kW is the most powerful Revive option, built for rooms from 600–900 cu. ft. — the right choice for large, commercial, or multi-bench sauna rooms.
Electrical Requirements:
- The 6kW and 7.5kW share the same breaker and wire requirements — 40 amp (240V) / 30 amp (208V) and AWG 10/8.
- The 9kW steps up to a 50 amp (240V) / 40 amp (208V) breaker and AWG 8 wire — confirm your electrical capacity with a licensed electrician before selecting.
- All three models support both 240V 1-Phase and 208V 3-Phase wiring configurations.
Control & Connectivity:
- Every Revive model ships with a WiFi-enabled touchpad — preheat from your phone before you even step inside.
- Choose from Indoor, Outdoor, or built-in 24-Hour (Tke 24D) control configurations to match your installation requirements.
Construction & Quality:

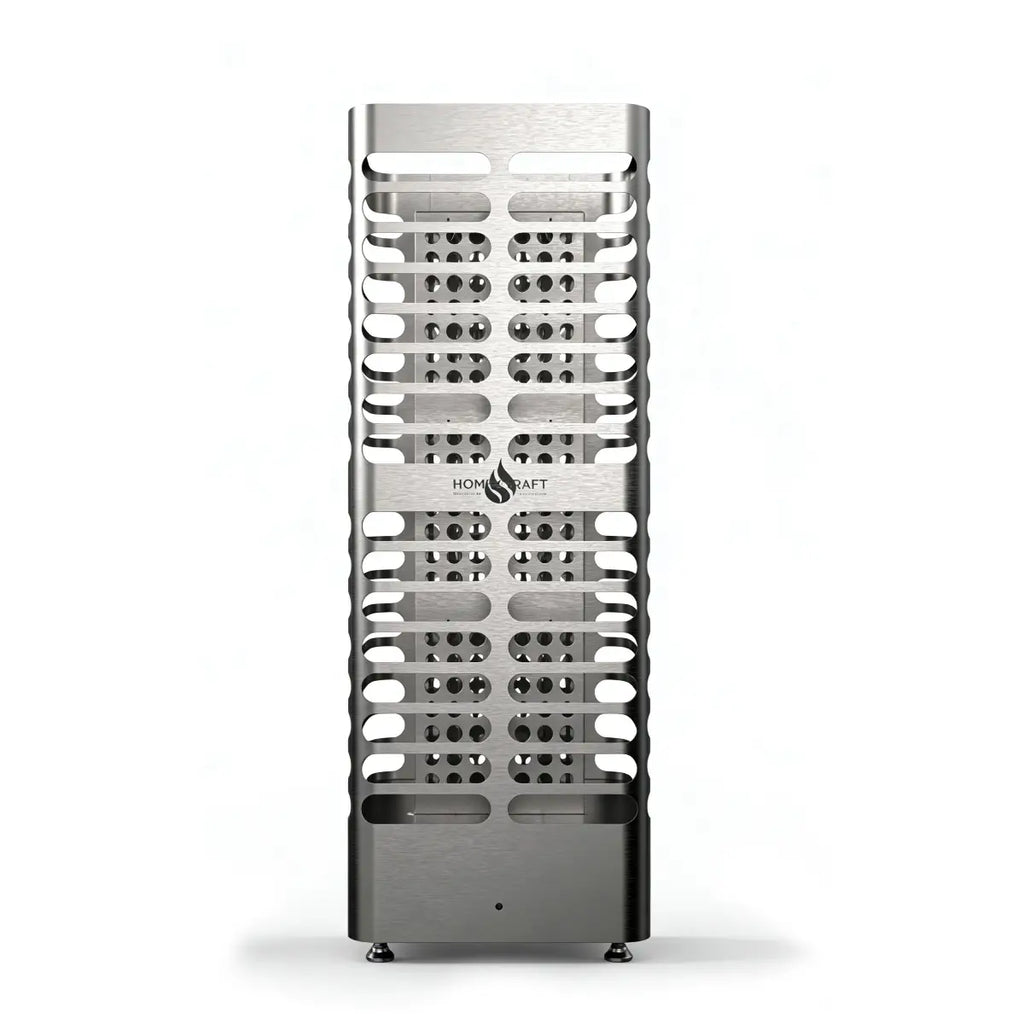

- All Revive sizes share the same 14" × 14" × 36" tower profile — 100% stainless steel, ETL certified, and proudly made in British Columbia, Canada.
- Every model carries the same 2-year manufacturer guarantee — heating elements included.
