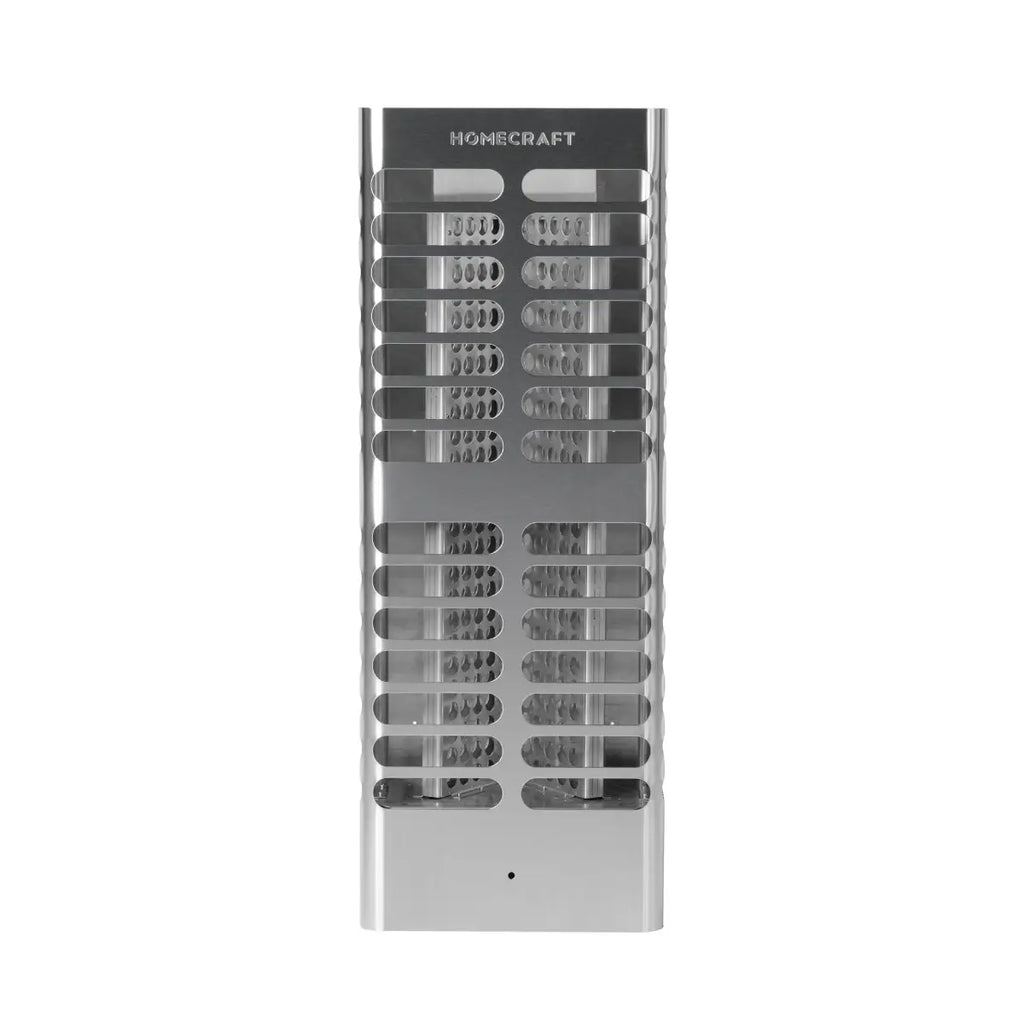

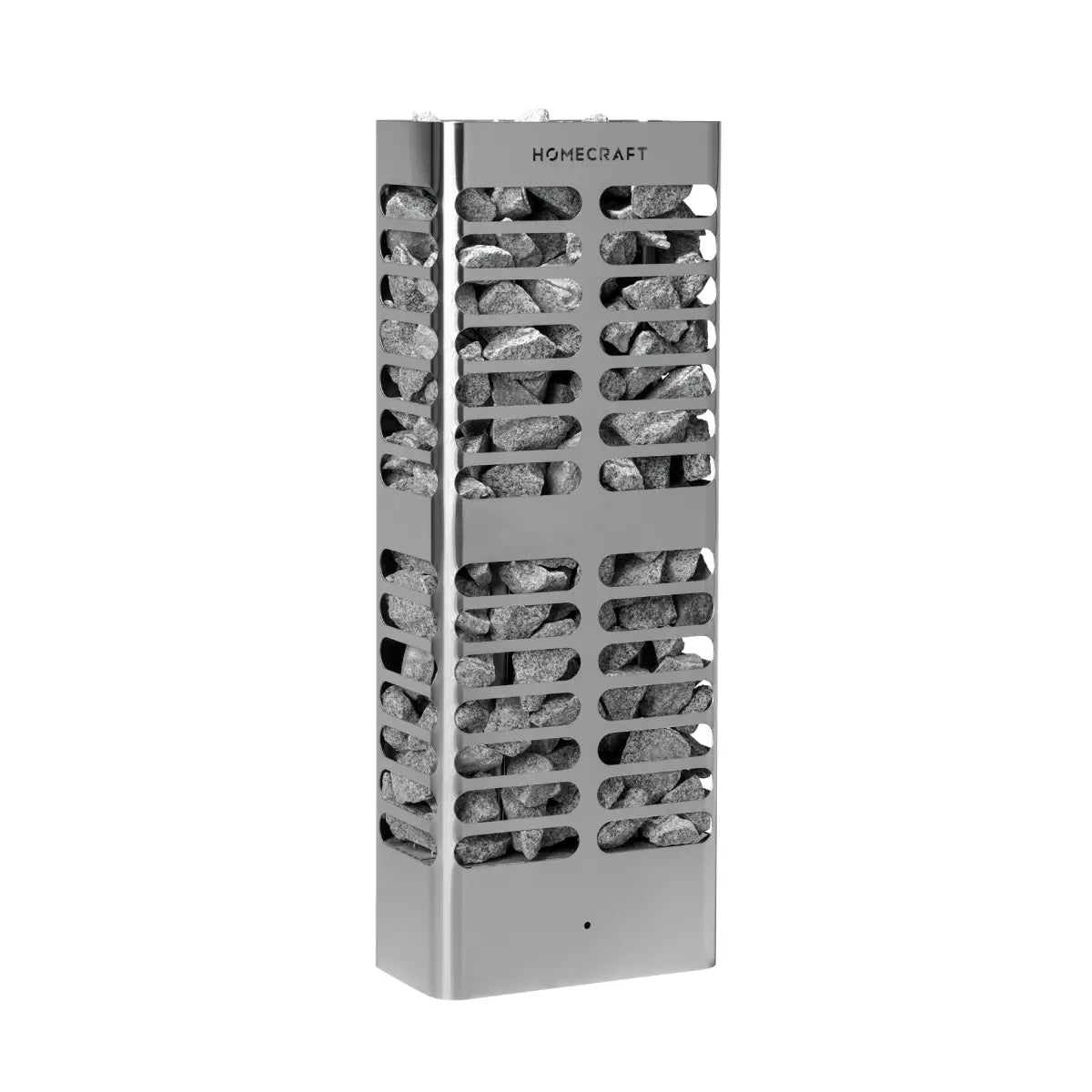

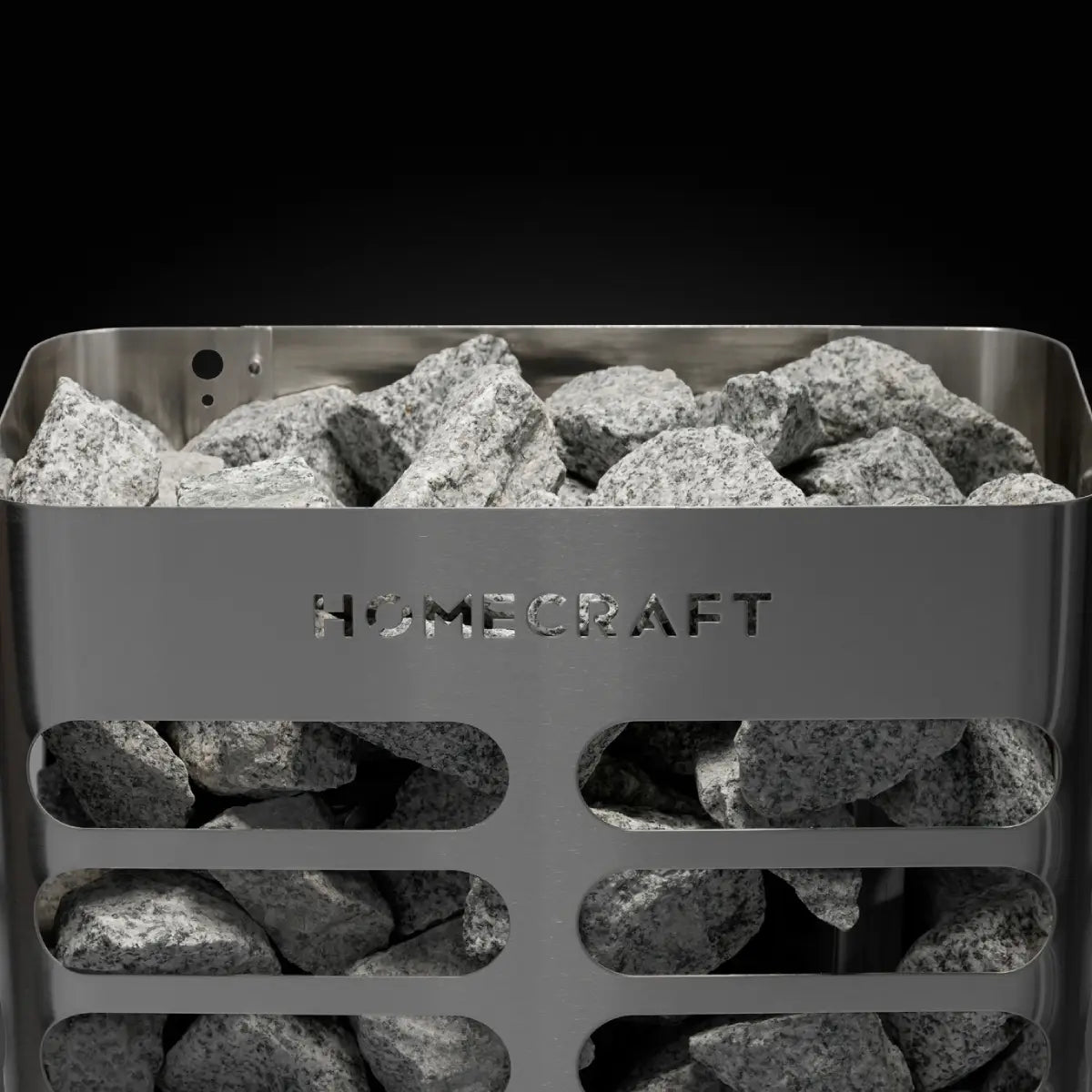

Homecraft Revive Slim 4kW Electric Sauna Heater
240V 1-Phase / No Control / No Stones
$1,350.00
Skip to product information
Pickup currently not available
Homecraft Revive Slim 4kW Electric Sauna Heater — Compact Design, Powerful Performance

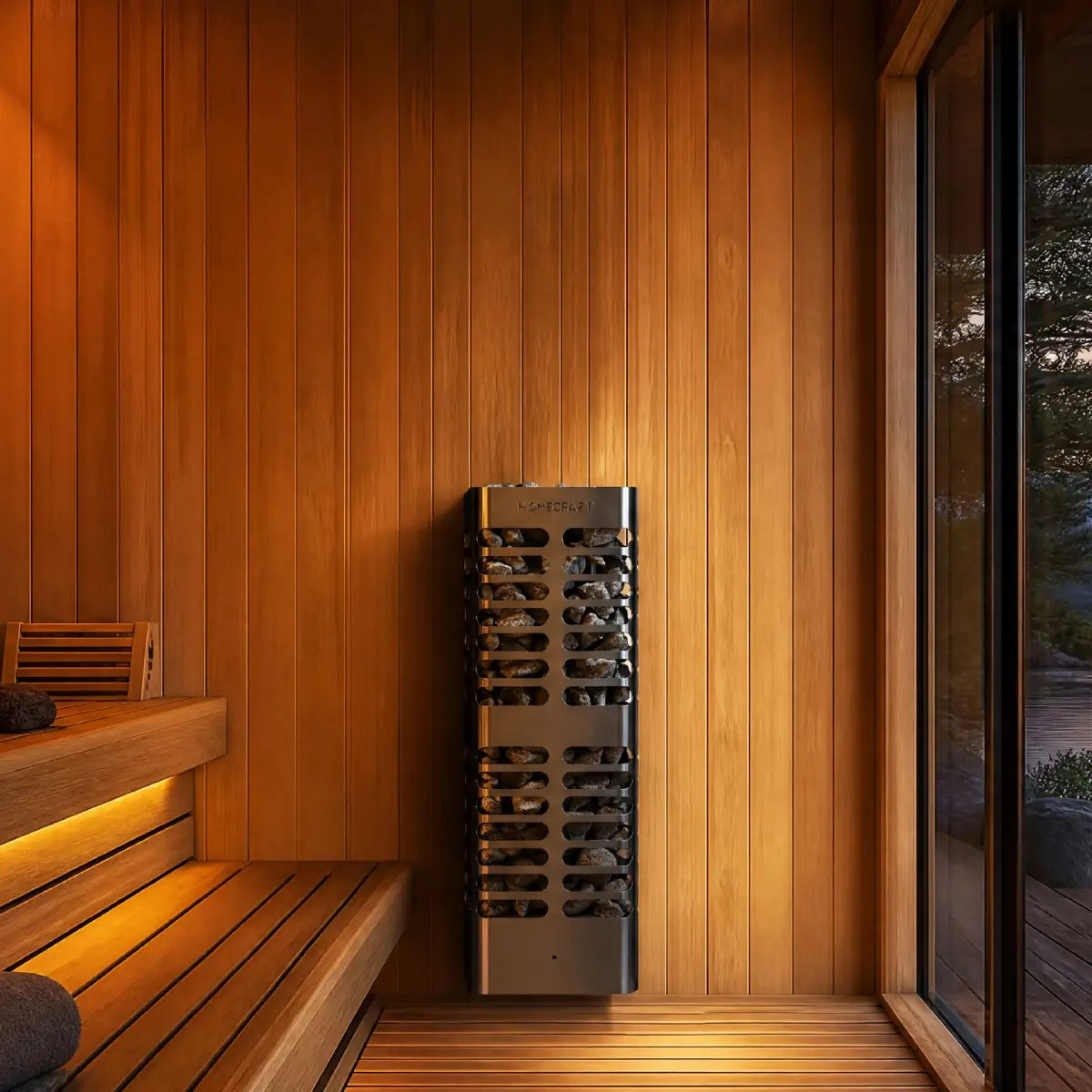

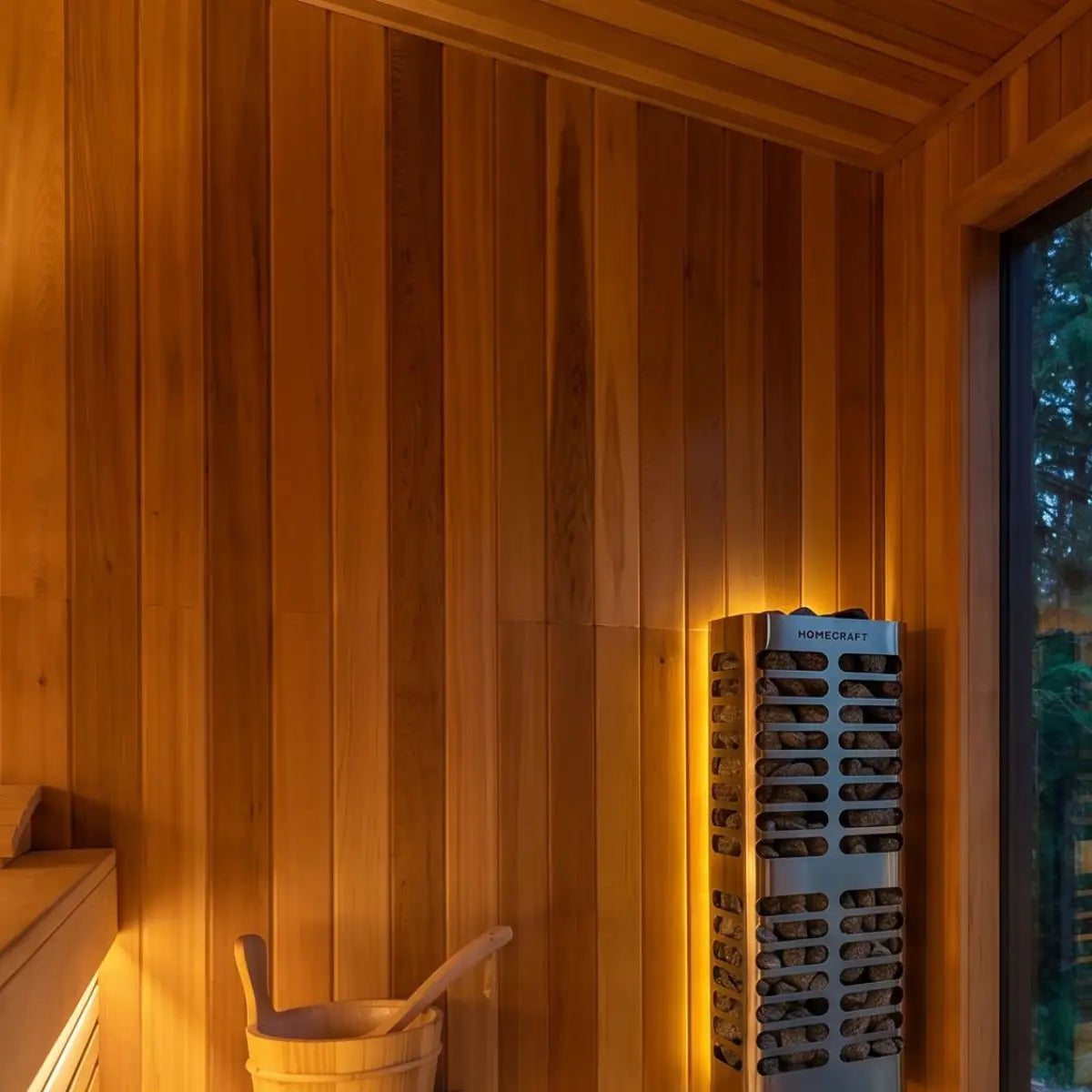

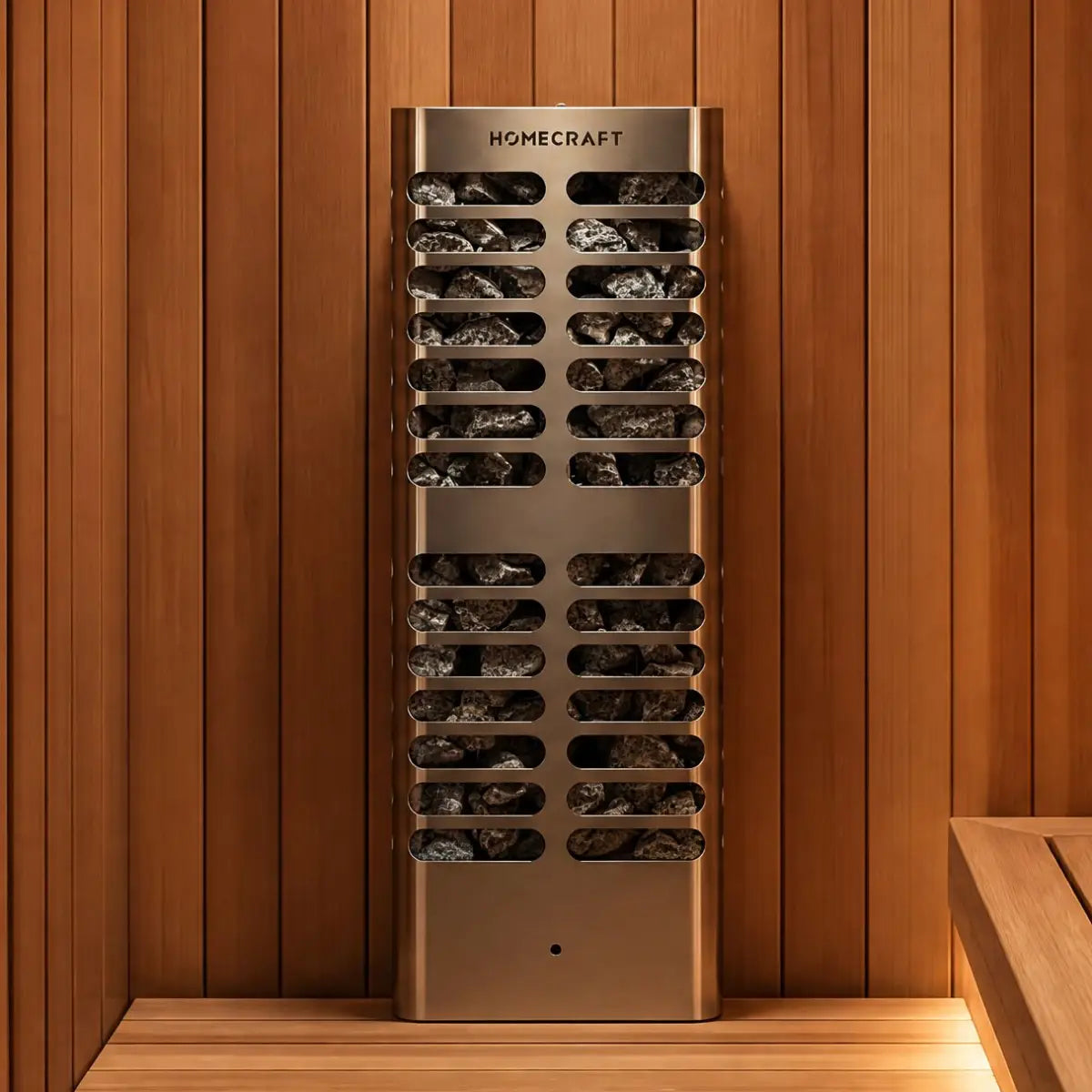

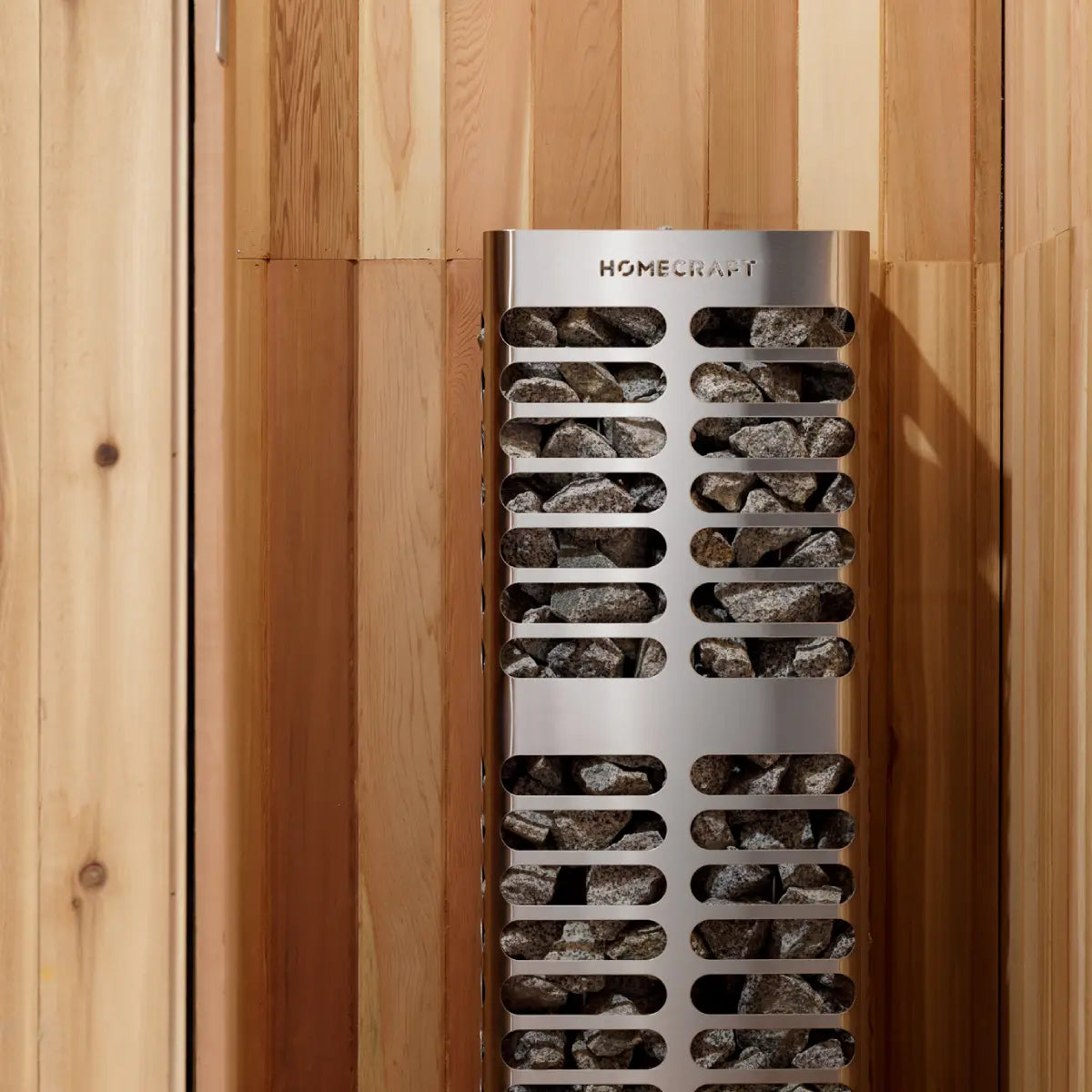

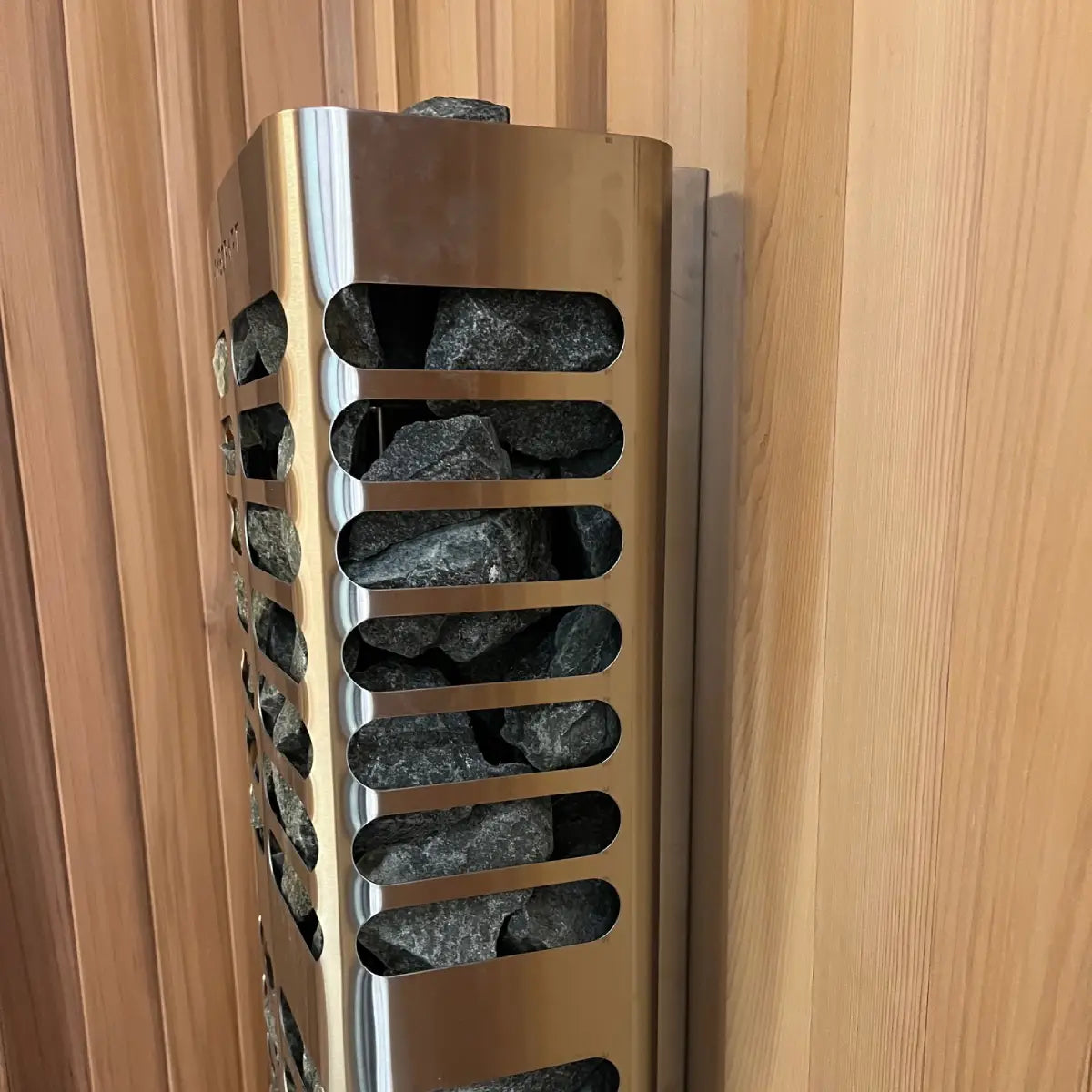

The Revive Slim is a game-changer for sauna builders working with limited space. Its sleek, tall, and compact 13" × 7.5" × 36" profile integrates seamlessly into smaller sauna setups — perfect for home use or compact spa environments. Despite its smaller footprint, the Revive Slim packs a punch: 100 lbs of rock capacity delivers the powerful, consistent löyly Homecraft customers have come to expect.
Quality Standards Unmatched
Proudly Canadian-made with over 35 years of sauna manufacturing heritage, the Revive Slim is built from 100% stainless steel with the same quality standards as our full-size Revive. The materials and engineering ensure durability and longevity.
Key Features
- Proudly Made in Canada — 100% stainless steel construction, built in BC
- ETL Certified — CSA and UL approved for North American installation
- 2-Year Manufacturer Guarantee — including the heating elements
- Protected Element Air Chamber — advanced airflow for faster heat-up and extended heater life
- Premium Stainless Steel — bold, modern aesthetics with lasting durability
- 35+ years of sauna heritage — Homecraft has been advocating for true sauna culture in North America since the 1980s
See It in Action
Choosing Your Control
Every Homecraft heater requires a sauna control to operate. All of our control configurations ship with a WiFi-enabled touchpad so you can preheat and adjust your sauna from your phone:
- Indoor Control + WiFi Touchpad — standard installation with the control box mounted inside a protected mechanical or utility space, paired with an in-sauna WiFi touchpad for temperature, timer, and smartphone control.
- Outdoor Control + WiFi Touchpad — weatherproof control box for installations where the box must be mounted outdoors or in a non-conditioned space, paired with a WiFi touchpad.
- Tke 24D Built-in 24-Hour Control — all-in-one control with integrated touchpad and a 24-hour timer for scheduled sessions.
The specific control model (Tke 2-2, Tke 2-3, or Tke 3) is matched automatically to your voltage and wattage selection.
Sauna Stones

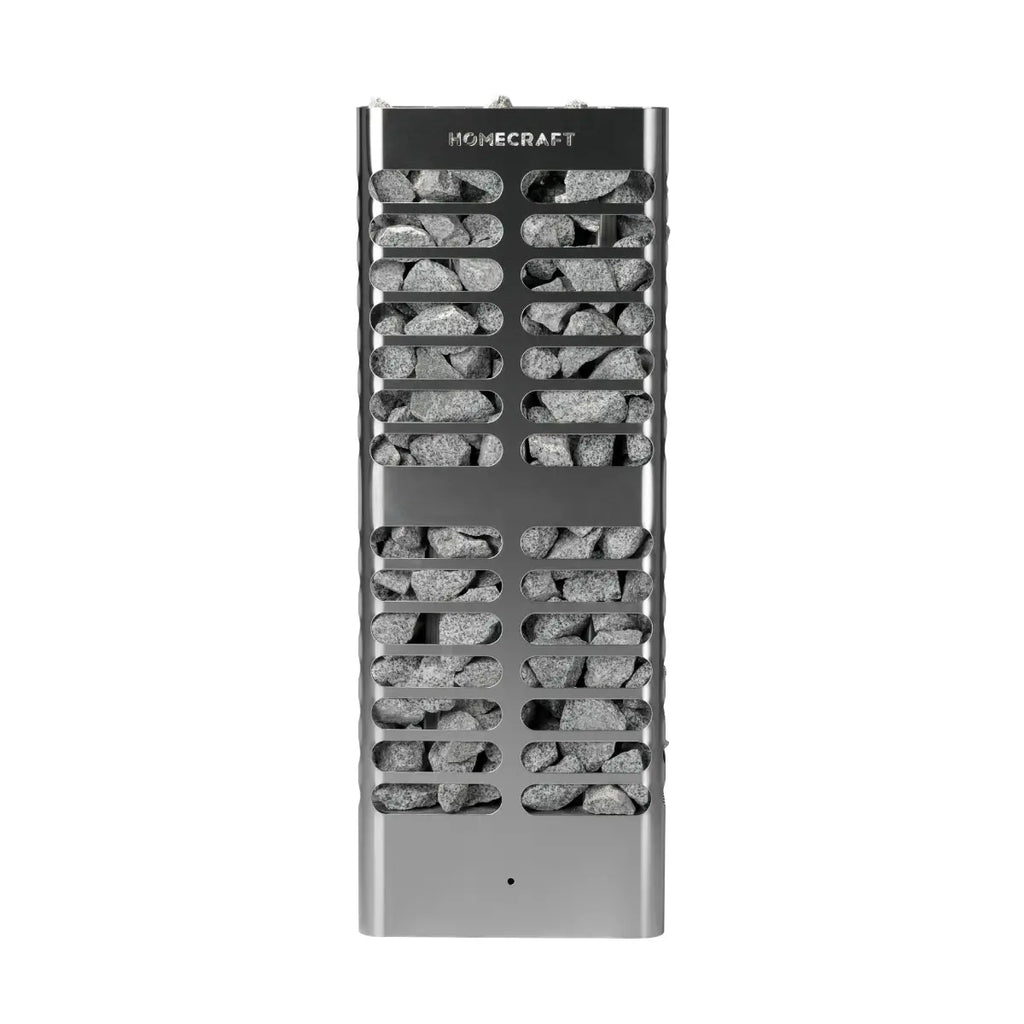

This heater requires 4 boxes of Homecraft Sauna Stones to fill the rock chamber. Choose Stones Included to ship your full stone set with the heater, or No Stones if you already have stones on hand or plan to source them separately.
Technical Specifications
| Feature | Details |
|---|---|
| Model | Homecraft Revive Slim 4kW |
| Power Output | 4 kW |
| Voltage | 240V 1-Phase |
| Recommended Room Size | 100 – 150 cu. ft. |
| Stone Capacity | 100 lbs (4 boxes of Homecraft Sauna Stones) |
| Heater Dimensions | 13" W × 7.5" D × 36" H |
| Distance to Combustibles | 3.5" (1" with Homecraft Heat Shield) |
| Construction | 100% Stainless Steel |
| Certifications | ETL Listed (CSA & UL 875) |
| Country of Origin | Canada (British Columbia) |
| Warranty | 2-Year Manufacturer Guarantee (including heating elements) |
| Recommended Breaker (240V 1-Phase) | 30 amp |
| Recommended Wire Size | AWG 10 |
| Required Control | Sauna control & touchpad (sold with heater — select your configuration above) |
Note: All dimensions and specifications are approximate and subject to change without notice. Installation must be performed by a qualified electrician in accordance with all local building and electrical codes.
Delivery & Installation
Your Homecraft heater is carefully packaged for safe transit. Installation must be performed by a qualified electrician and must comply with all local building and electrical codes. See the included installation manual for complete wiring, mounting, and stone-loading instructions.
Homecraft Revive Slim — Size Comparison Chart
| Feature | Revive Slim 4kW | Revive Slim 5kW | Revive Slim 6kW |
|---|---|---|---|
| Product Image |
|
|
|
| Power Output | 4 kW | 5 kW | 6 kW |
| Recommended Room Size | 100 – 150 cu. ft. | 100 – 250 cu. ft. | 200 – 300 cu. ft. |
| Voltage | 240V 1-Phase | 240V 1-Phase | 240V 1-Phase |
| Stone Capacity | 100 lbs (4 boxes) | 100 lbs (4 boxes) | 100 lbs (4 boxes) |
| Recommended Breaker (240V) | 30 amp | 30 amp | 40 amp |
| Recommended Wire Size | AWG 10 | AWG 10 | AWG 8 |
| WiFi Control | ✅ Yes | ✅ Yes | ✅ Yes |
| ETL Certified | ✅ Yes | ✅ Yes | ✅ Yes |
| Made in Canada | ✅ Yes | ✅ Yes | ✅ Yes |
| Construction | 100% Stainless Steel | 100% Stainless Steel | 100% Stainless Steel |
| Warranty | 2-Year | 2-Year | 2-Year |
Revive Slim 4kW
Power Output
4 kW
Room Size
100 – 150 cu. ft.
Stone Capacity
100 lbs (4 boxes)
Breaker (240V)
30 amp
Wire Size
AWG 10
WiFi Control
✅ Yes
ETL Certified
✅ Yes
Made in Canada
✅ Yes
Warranty
2-Year
Revive Slim 5kW
Power Output
5 kW
Room Size
100 – 250 cu. ft.
Stone Capacity
100 lbs (4 boxes)
Breaker (240V)
30 amp
Wire Size
AWG 10
WiFi Control
✅ Yes
ETL Certified
✅ Yes
Made in Canada
✅ Yes
Warranty
2-Year
Revive Slim 6kW
Power Output
6 kW
Room Size
200 – 300 cu. ft.
Stone Capacity
100 lbs (4 boxes)
Breaker (240V)
40 amp
Wire Size
AWG 8
WiFi Control
✅ Yes
ETL Certified
✅ Yes
Made in Canada
✅ Yes
Warranty
2-Year
Key Differences
Power & Room Coverage:
- The 4kW is ideal for the most compact sauna installations — perfectly sized for 1–2 person rooms up to 150 cu. ft.
- The 5kW offers a wider coverage range of 100–250 cu. ft., giving more flexibility for well-insulated or slightly larger spaces.
- The 6kW is the most powerful Revive Slim option, covering rooms from 200–300 cu. ft. — all in the same slim, space-saving footprint.
Control & Connectivity:
- Every Revive Slim model ships with a WiFi-enabled touchpad — preheat from your phone before you even step inside.
- Choose from Indoor, Outdoor, or built-in 24-Hour (Tke 24D) control configurations to match your installation requirements.
Construction & Quality:
- All Revive Slim sizes share the same 13" × 7.5" × 36" profile — 100% stainless steel, ETL certified, and proudly made in British Columbia, Canada.
- Every model carries the same 2-year manufacturer guarantee — heating elements included.
