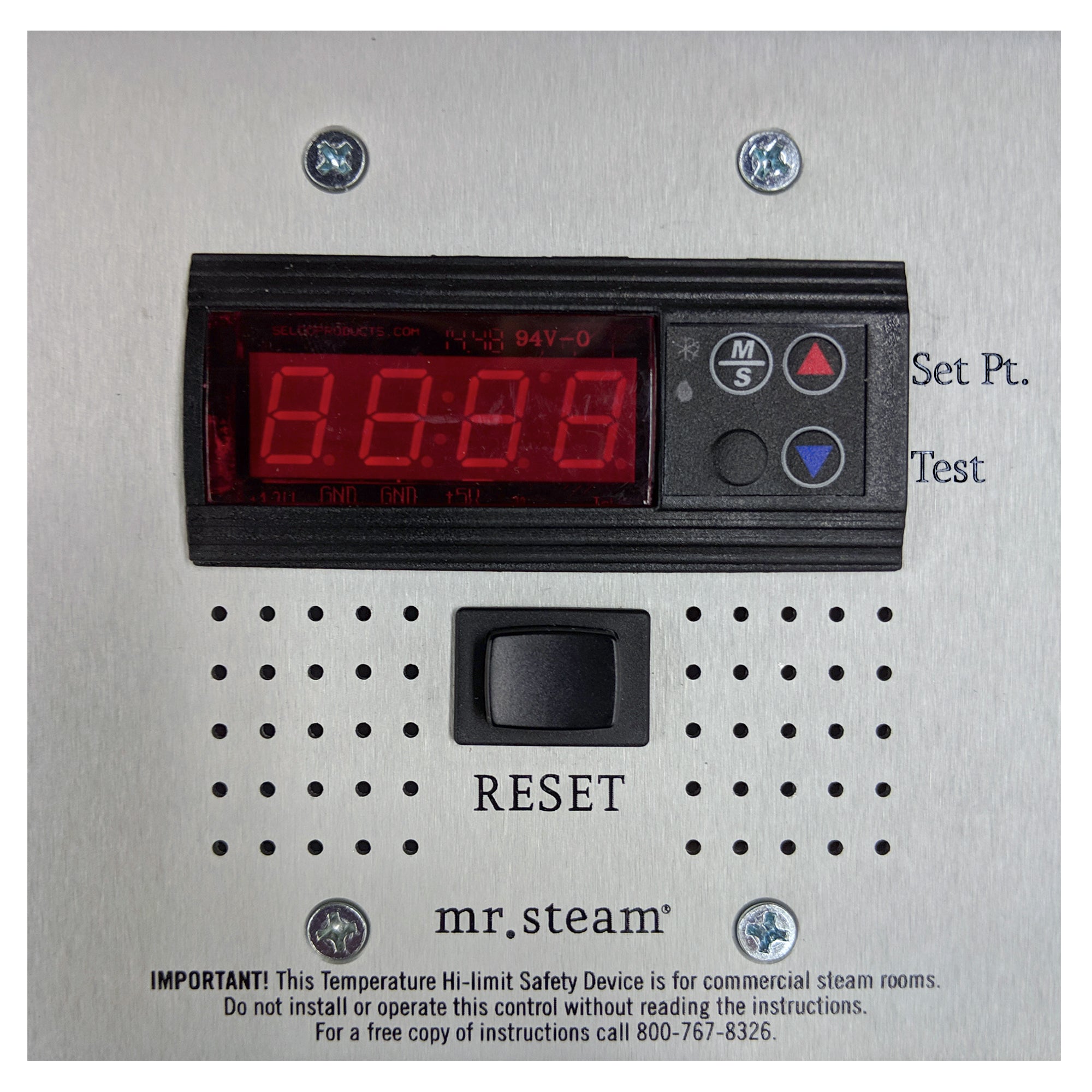

Mr Steam High Limit Control For Commercial Generators
By Mr Steam
Description
The CU High Limit Device is for use with any CT Day Spa or CU Commercial Steam Generator System to provide over temperature shutoff and alarm function. If the steam room temperature rises above the set point of 120°F, the device will sound an alarm and disconnect the heating source. The Device and the steam generator can only be reset by the attendant after the steam room cools to a point below the Device’s set point Device is required where indicated by code.
Technical Specifications
- Emergency stop switch to electronically shut down the steam generator
- multiple steam stop switches can be used with one control
- Water resistant IP-69K rating
- Suitable for use inside or outside the steam room
- For use with CU360-CU1400 generators
Shipping Details
- Weight - 3 LB.
- Width (Side to Side) - 5.83 IN.
- Depth (Front to Back) - 5.83 IN.
- Height (Top to Bottom) - 5.5 IN.
- Ship. Weight - 4 LB.
- Ship. Width (Side to Side) - 6.83 IN.
- Ship. Depth (Front to Back) - 6.83 IN.
- Ship. Height (Top to Bottom) - 6.5 IN.
Downloads
- Planning Guide
- Benefits Brochure
- Steam Benefits Brochure
- Installation Manual
- Technical Specification Chart
- Warranty Sheet
