Description

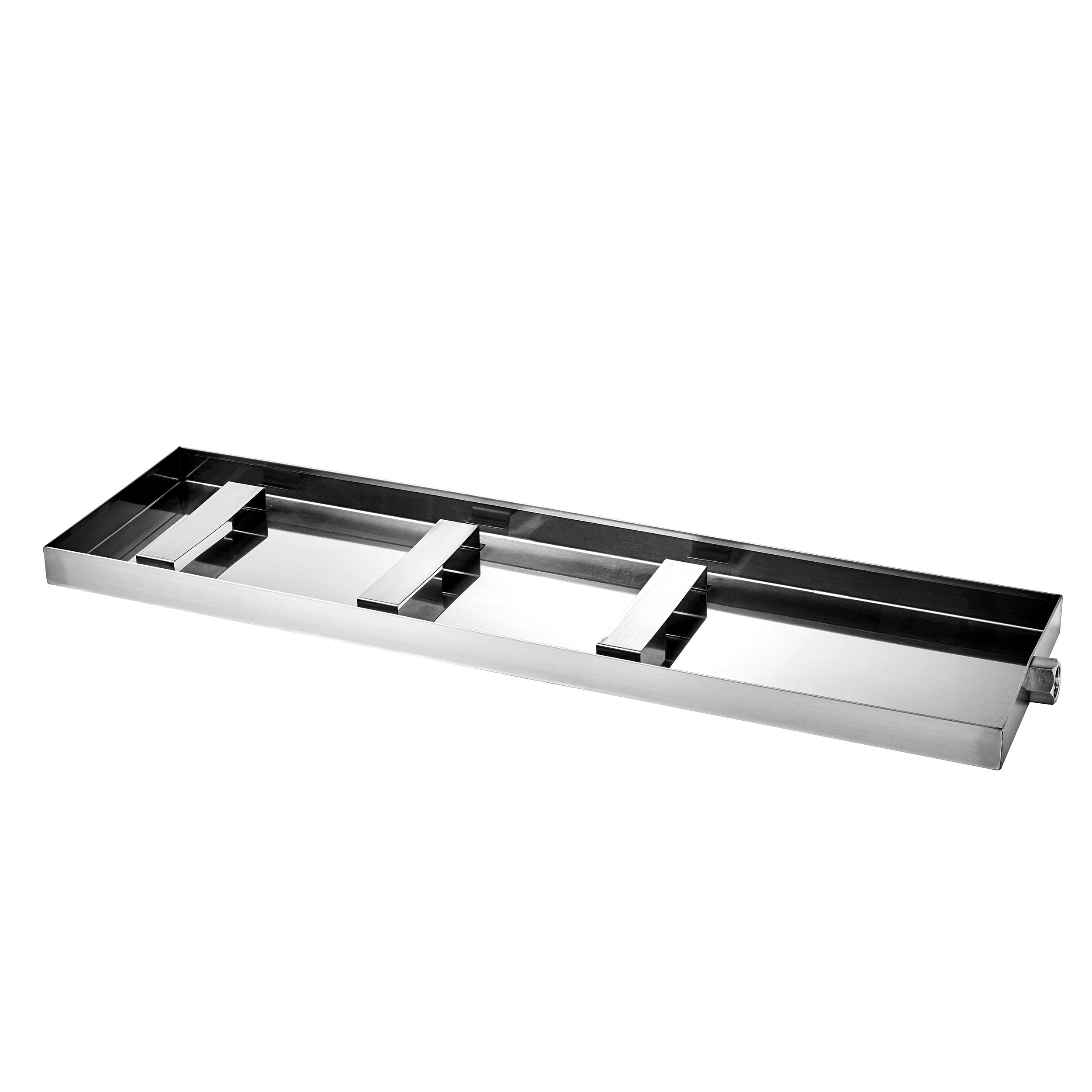

Sitting under our MAX Series Generators, the MAX Condensation Pan protects bathrooms from potential water escape. Just locate the condensation pan on a solid level surface and place the steam generator inside the condensation pan. Ensure the steam generator is leveled. MAX Condensation Pan drains by gravity.

Technical Specifications

• For MX4E - MX6E Generators
• Installs beneath the MAX Steam Generator and connects to an approved drain line to collect and direct a potential water accumulation or leak
• Built in brackets raise the MAX Steam Generator above the bottom of the pan
• Measures 33” x 9” x 1 1/2”

Shipping Details

• Weight - 3.7 LB.
• Width (Side To Side) - 34.06 IN.
• Depth (Front To Back) - 9 IN.
• Height (Top To Bottom) - 1.45 IN.
• Ship. Weight - 4.7 LB.
• Ship. Width (Side To Side) - 35.06 IN.
• Ship. Depth (Front To Back) - 10 IN.
• Ship. Height (Top To Bottom) - 2.45 IN.
