Mr Steam MS Condensation Pan For MS Series and SUPER Series Generators
By Mr Steam
Description

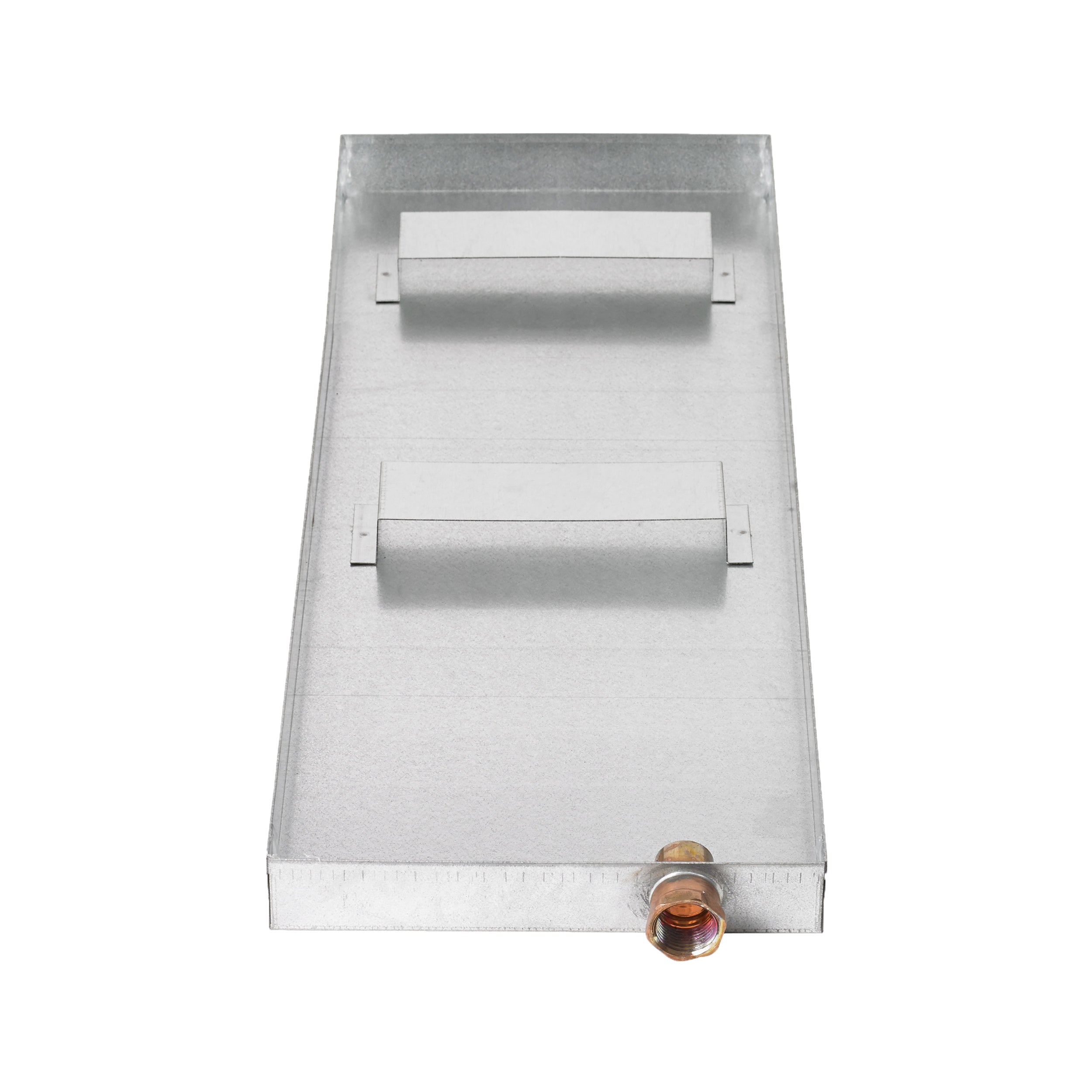

Sitting under our e-Series Generators, the Condensation Pan protects bathrooms from potential water escape. Just locate the condensation pan on a solid level surface and place the steam generator inside the condensation pan. Ensure the steam generator is leveled. The Condensation Pan drains by gravity.
Technical Specifications
- Installs beneath the steam generator and connects to an approved drain line to collect and direct a potential water accumulation or leak
- Built in brackets raise the Steam Generator above the bottom of the pan
- Measures 25”L x 9”W x 1 ½”H
- Compatible with all Mr. Steam generators
Shipping Details
- Weight - 3 LB.
- Width (Side To Side) - 25 IN.
- Depth (Front To Back) - 9 IN.
- Height (Top To Bottom) - 1.5 IN.
- Ship. Weight - 4 LB.
- Ship. Width (Side To Side) - 26 IN.
- Ship. Depth (Front To Back) - 10 IN.
- Ship. Height (Top To Bottom) - 2.5 IN.
